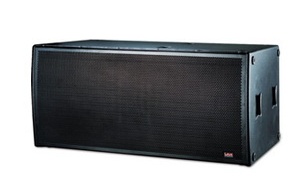

TH828B
2x18" Subwoofer



TH828B subwoofer is developed with special purpose of achieving ultra low frequency and higher output better than TH600 Series. So a brand new highly qualified 18"LF driver is greatly needed.
The paper cone is re-designed and the spider is modified to eliminate the airflow noise while it’s used at large dynamic range. Af ter the magnetic circuit is modified as well and the stroke of voice coil is increased,the original paper cone and frame are found incapable of meeting the requirements. The paper cone and frame have to be changed. spider is further improved. Even the wiring method is re-designed for the purpose. The subwoofer delivers powerful, low-ranging and dynamic bottom-end response deep to 30Hz-50Hz with lower nonlinear distortion and higher output af ter the specification of T/S is adjusted and the space of inverted phase tube is enlarged.

We didn’t get the current brand new 18"woofer until the 8th sample was successfully made.
The TH828B is a subwoofer designed to extend low-range frequency response It is loaded with a directradiating 2X18"cone loudspeaker housed in a phase inverted enclosure. The Sub delivers powerful, lowranging and dynamic bottom-end response deep to 30Hz.

It is finely suited for application in which a sound system requires a more punching low-frequency
reinforcement.

APPLICATIONS


Main speaker for auditorium, conference,theater,multipurpose.
Main/fill in disco and club.


SPECIFICATIONS


Frequency Response  30Hz-200Hz(±3dB)
25Hz-250Hz(-10dB)
Sensitivity(1W/1m) 100dB
Nominal impedance 4ohm
Power Rated (AES) 1400W
LF 2x18"/100mm voice coil/1400W
SPL  131dB continuous, 137dB peak
Connector 2 NEUTRIK NL4MP
Enclosure Phase inverted
Dimension(WXDXH)  1197mmx712mmx553mm
Weight 80kg
Recommended AMP MA8200/R811

스펙

Frequency Response  30Hz-200Hz(±3dB)
25Hz-250Hz(-10dB)
Sensitivity(1W/1m) 100dB
Nominal impedance 4ohm
Power Rated (AES) 1400W
LF 2x18"/100mm voice coil/1400W
SPL  131dB continuous, 137dB peak
Connector 2 NEUTRIK NL4MP
Enclosure Phase inverted
Dimension(WXDXH)  1197mmx712mmx553mm
Weight 80kg
Recommended AMP MA8200/R811
