JRX212

JBL
제품코드 : 9261

가격

도매 할인가격 :
가입안내
뮤플 할인가격 :
할인가격 상담 :
할인가격상담 이란?

옵션 & 수량 & 장바구니

수량 :

소비자 가격 :

장바구니담기

관심상품담기

구매정보

제품상태 :

판매중

무이자 할부:

무료배송 :

10만원 이상 구매 시 무료
음향기기 > 음향 > 스피커 > 종류 > 패시브 스피커
음향기기 > 음향 > 스피커 > 용도 > 일반용

제품사진

이 제품의 연관제품

뮤플의 한 마디

“”

제품 상세설명

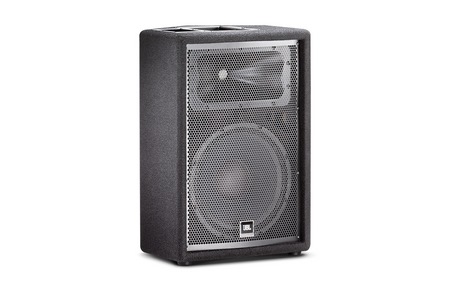

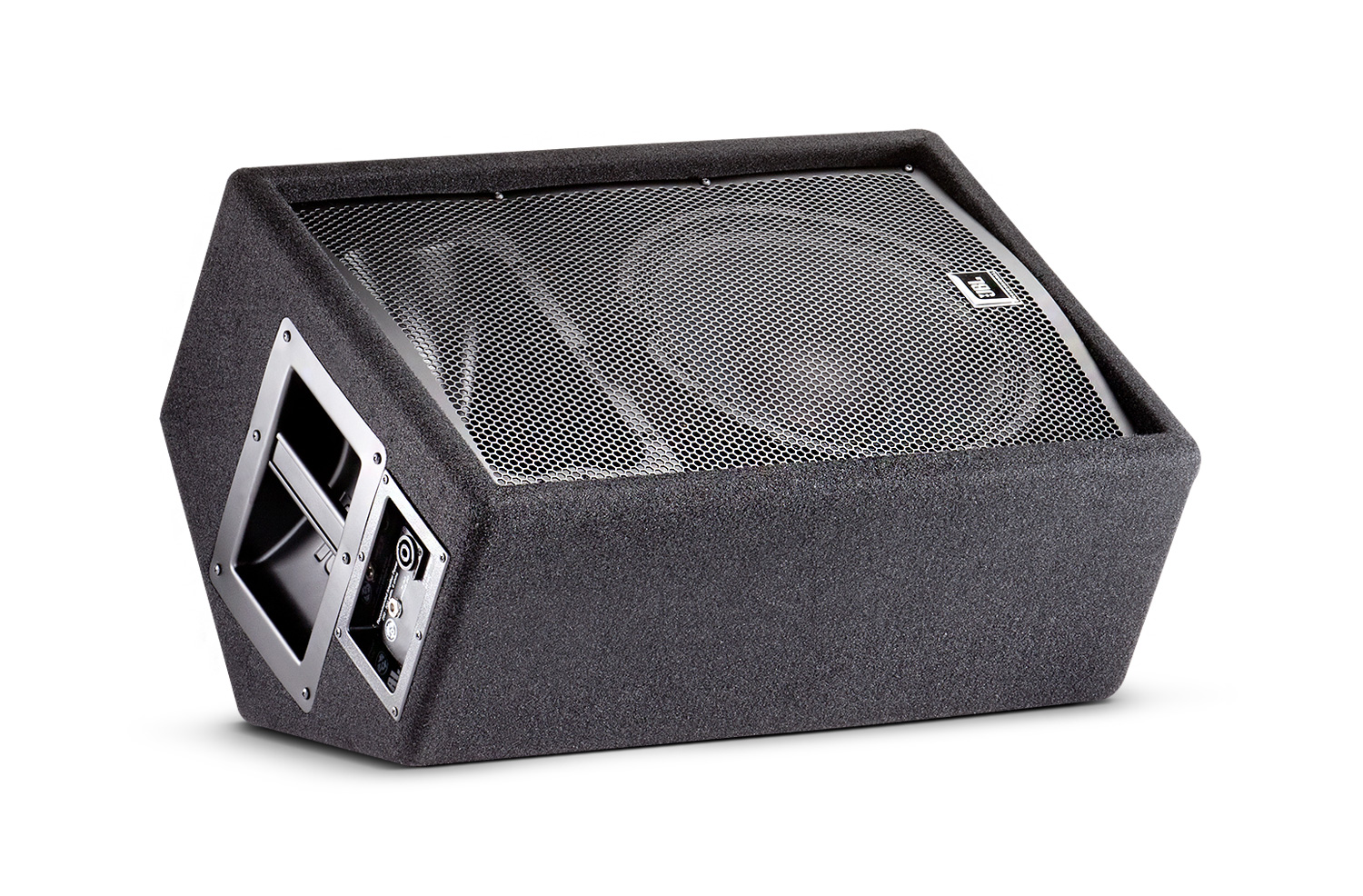

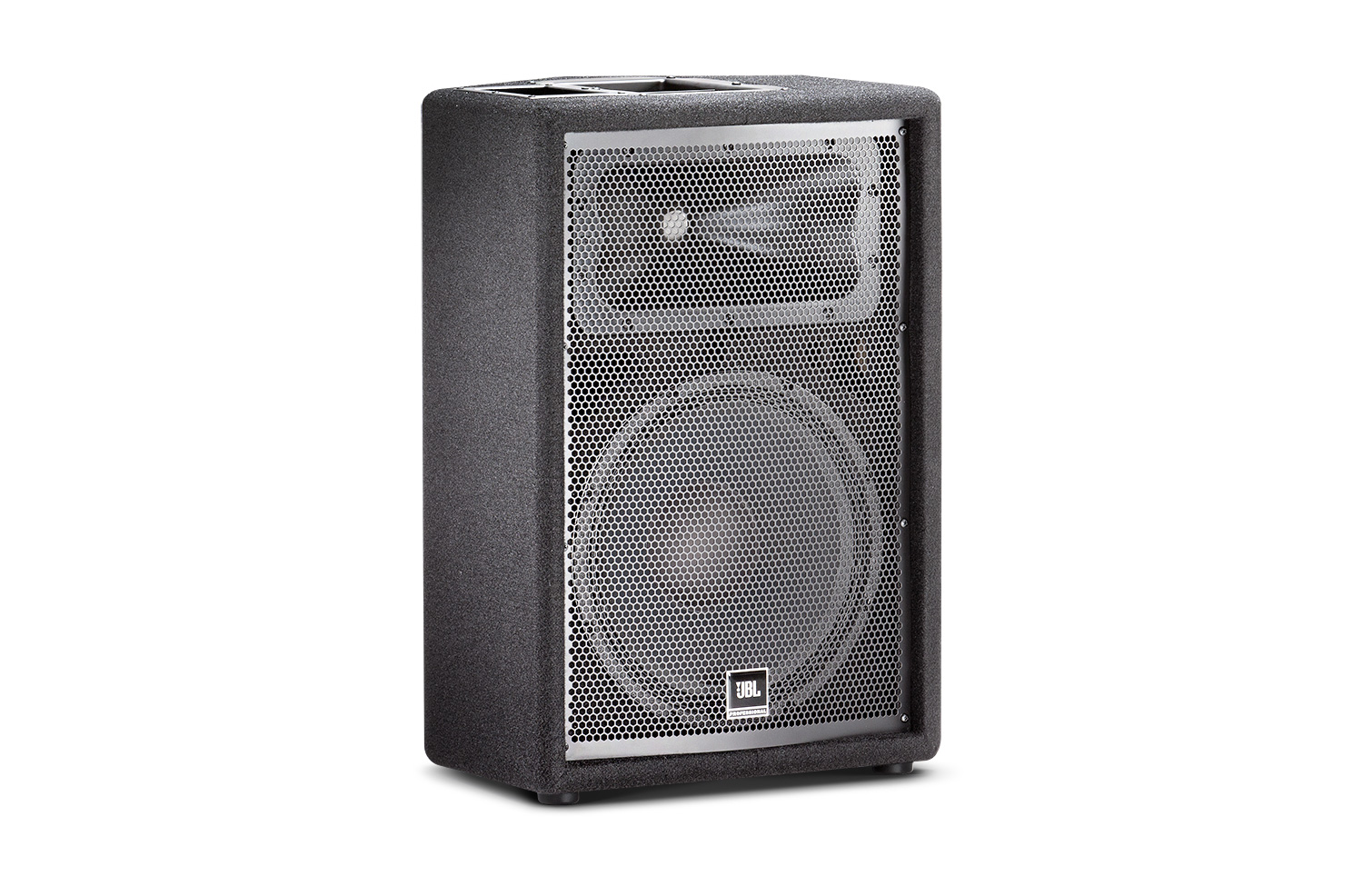

12 in. Two-Way Stage Monitor Loudspeaker System
The JRX212 is a portable, twelve-inch, two-way speaker system designed specifically for live performance stage monitoring applications.



FEATURES
∧
  • JBL 12 in low frequency driver with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more cross-sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
  • JBL 2414H-C 25 mm (1 in) polymer diaphragm compression driver improves high frequency performance as well as system reliability.
  • The advanced network topology crossover design shapes frequency response and delivers "coherent summation" in the crossover region.
  • High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
  • Progressive Transition™ high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
  • The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
  • SonicGuard™ protects the high frequency driver from excess power without interrupting the performance.

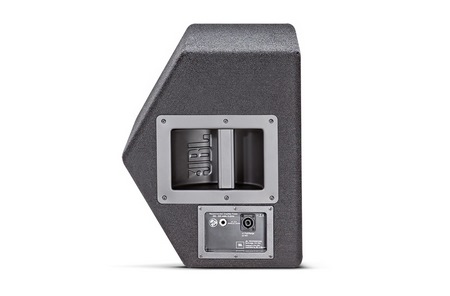

  • Non-resonant, all-steel handles are used.
  • Attractive 18-gauge hexagon perforated, steel grille protects components from damage.
  • Dual-angle pole-mount socket allows the speaker to tilt 10°for more uniform audience coverage.

SPECIFICATIONS
^
Power Rating 250 W / 1000 W
Frequency Range (-10 dB) 60 Hz - 20 kHz
Frequency Response (±3 dB) 80 Hz - 18 kHz
Sensitivity (@1m) 98 dB SPL (1w/1m)
Nominal Impedance 8 ohms
Recommended Amplifier Power 250 W to 500 W into 8 ohms
Maximum SPL 128 dB
Nominal Dispersion 90º x 50º
Crossover Frequency 2.1 kHz
Dimensions
(H x W x D)		 584 mm x 399 mm x 325 mm
(23 in x 15.7 in x 12.8 in)
Weight 19.5 kg (43 lb)
High Frequency Driver JBL 2414H-C , 1" exit compression driver mounted on Progressive Transition™ Waveguide
Low Frequency Driver JBL M112-8
Input Connectors Neutrik® Speakon® NL-4 (x1); .25 in
TS phone jack (x1); parallel

스펙

SPECIFICATIONS
^
Power Rating 250 W / 1000 W
Frequency Range (-10 dB) 60 Hz - 20 kHz
Frequency Response (±3 dB) 80 Hz - 18 kHz
Sensitivity (@1m) 98 dB SPL (1w/1m)
Nominal Impedance 8 ohms
Recommended Amplifier Power 250 W to 500 W into 8 ohms
Maximum SPL 128 dB
Nominal Dispersion 90º x 50º
Crossover Frequency 2.1 kHz
Dimensions
(H x W x D)		 584 mm x 399 mm x 325 mm
(23 in x 15.7 in x 12.8 in)
Weight 19.5 kg (43 lb)
High Frequency Driver JBL 2414H-C , 1" exit compression driver mounted on Progressive Transition™ Waveguide
Low Frequency Driver JBL M112-8
Input Connectors Neutrik® Speakon® NL-4 (x1); .25 in
TS phone jack (x1); parallel
