OVERALL SYSTEM

• Operating Frequencies: 2.4 GHz ISM band
• Dynamic Range: >109 dB (A-weighted), typical
• Total Harmonic Distortion: <0.05% typical
• Operating Range: 60 m (200’) Open range env. with no interfering signals
• Operating Temperature Range: 0° C to 40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures
• Frequency Response: 20 Hz to 20 kHz Depending on microphone type
• Audio Sampling: 24 bit / 48 kHz
• Latency: 3.8 ms

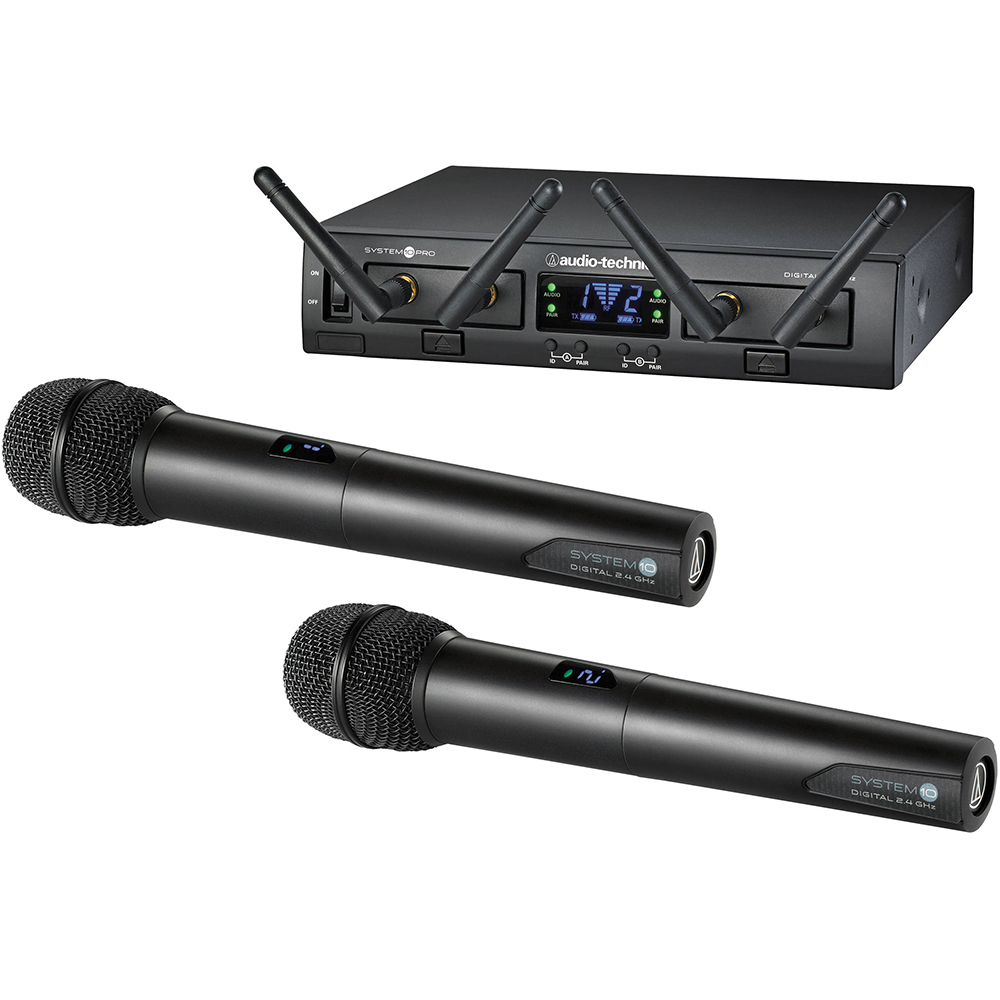

ATW-RC13 RECEIVER CHASSIS

• Maximum Output Level: XLR, balanced: 0 dBV 1/4" (6.3 mm), unbalanced: 6 dBV
• Power Supply: 100-240V AC (50/60 Hz) to 12V DC 0.5A power supply switched mode external
• Dimensions: 209.8 mm (8.26") W x 44 mm (1.73") Hx 169.3 mm (6.67") D
• Net Weight: 940 grams (33.2 oz)
• Remote Receiver Connector: RJ45
• Link Connector: RJ12
• Accessories: Included AC adapter, Link cable, Rack-mount adapters, Joining plate, Rubber feet

ATW-RU13 RECEIVER UNIT

• Receiving System: Diversity (frequency/time/space)
• Dimensions: 57 mm (2.24") W x 19 mm (0.75") H x 77.6 mm (3.06") D
• Net Weight: 64 grams (2.3 oz)
• Remote receiver connector: RJ45
• Mounting Thread Insert: 1/4" x 20
• Accessories: Included Antennas, AT8690 RU13 holder

UNIPAK® TRANSMITTER

• RF Output Power: 10 mW
• Spurious Emissions: Following federal and national regulations
• Input Connection: Four-pin Locking Connector, Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS 9V
• Batteries (not included): Two 1.5V AA
• Battery Life: >7 hours (alkaline) Depending on batt. type & use pattern
• Dimensions: 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D
• Net Weight (w/o batteries): 100 grams (3.5 oz)

HANDHELD TRANSMITTER

• RF Output Power: 10 mW
• Spurious Emissions: Following federal and national regulations
• Batteries (not included): Two 1.5V AA
• Battery Life: >7 hours (alkaline) Depending on batt. type & use pattern
• Dimensions: 254.8 mm (10.03") long, 50.0 mm (1.97") diameter
• Net Weight (w/o batteries): 280 grams (9.9 oz)
• Accessory Included: AT8456a Quiet-Flex™ stand clamp
