AT4040SV

Audio-Technica
제품코드 : 8951

가격

할인 전 가격 :
₩972,000
도매 할인가격 :
가입안내
뮤플 할인가격 :
할인가격 상담 :
할인가격상담 이란?

옵션 & 수량 & 장바구니

수량 :

상담 할인금액 :

가격상담을 받기 전 입니다

최종 구매가격 :

장바구니담기

관심상품담기

구매정보

제품상태 :

판매중

무이자 할부:

구매 혜택 :

485W 증정

무료배송 :

10만원 이상 구매 시 무료
음향기기 > 음향 > 유선마이크 > 종류 > 대구경 콘덴서

제품사진

이 제품의 다른 시리즈 제품

뮤플의 한 마디

“”

제품 상세설명



AT4047/SV

Cardioid Condenser Microphone


The rich, warm sound takes you back to the classic F.E.T. studio microphones. But there’s nothing remotely old-fashioned about the technology behind that vintage sound. The AT4047/SV studio condenser’s dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range. With a wide dynamic range, incredibly low self-noise and high SPL capability, this versatile microphone excels on vocals, strings, acoustic guitar, instrument ensembles, small vocal groups and voiceovers.


  • Designed for critical studio, live sound and broadcast applications

  • Transformer-coupled output and specially-tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs

  • Exceptionally low self-noise, wide dynamic range and high SPL capability

  • Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone

  • Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity

  • Vintage silver-matte finish on microphone and shock mount

  • Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections

  • State-of-the-art surface-mount electronics ensure compliance with A-T’s stringent consistency and reliability standards

  • Switchable 80 Hz hi-pass filter and 10 dB pad

  • Custom shock mount provides superior isolation


ELEMENT Externally-polarized (DC bias) condenser
POLAR PATTERN Cardioid
FREQUENCY RESPONSE 20-18,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY -35 dB (17.7 mV) dB re 1V at 1 Pa
IMPEDANCE 250 ohms
MAXIMUM INPUT SOUND LEVEL 149 dB SPL, 1 kHz at 1% T.H.D.;
159 dB SPL, with 10 dB pad (nominal)
NOISE 9 dB SPL
DYNAMIC RANGE (typical) 140 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 85 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 48V DC, 3.0 mA typical
SWITCHES Flat, roll-off;
10 dB pad (nominal)
WEIGHT 14.5 oz (410 g)
DIMENSIONS 6.69" (170.0 mm) long,
2.10" (53.4 mm) maximum body diameter
OUTPUT CONNECTOR Integral 3-pin XLRM-type

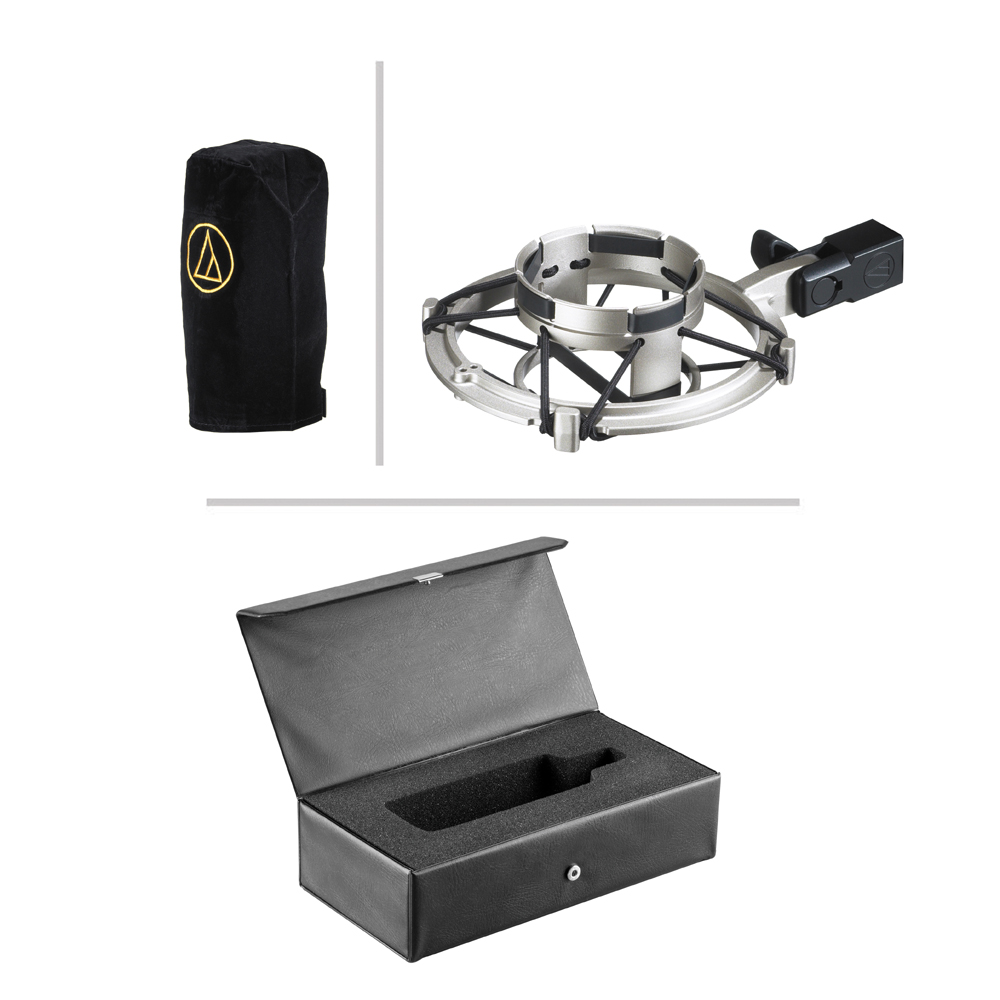

ACCESSORIES FURNISHED AT8449/SV shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case
AUDIO-TECHNICA CASE STYLE R1
Click on the chart to view the larger image
POLAR PATTERN
POLAR PATTERN
FREQUENCY RESPONSE
FREQUENCY RESPONSE

스펙

ELEMENT Externally-polarized (DC bias) condenser
POLAR PATTERN Cardioid
FREQUENCY RESPONSE 20-18,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY -35 dB (17.7 mV) dB re 1V at 1 Pa
IMPEDANCE 250 ohms
MAXIMUM INPUT SOUND LEVEL 149 dB SPL, 1 kHz at 1% T.H.D.;
159 dB SPL, with 10 dB pad (nominal)
NOISE 9 dB SPL
DYNAMIC RANGE (typical) 140 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 85 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 48V DC, 3.0 mA typical
SWITCHES Flat, roll-off;
10 dB pad (nominal)
WEIGHT 14.5 oz (410 g)
DIMENSIONS 6.69" (170.0 mm) long,
2.10" (53.4 mm) maximum body diameter
OUTPUT CONNECTOR Integral 3-pin XLRM-type
ACCESSORIES FURNISHED AT8449/SV shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case
AUDIO-TECHNICA CASE STYLE R1
Click on the chart to view the larger image
POLAR PATTERN
POLAR PATTERN
FREQUENCY RESPONSE
FREQUENCY RESPONSE
