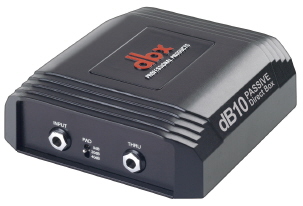

DB10

DBX
제품코드 : 8198

특징

패시브 DI-BOX / 깨끗한 소리를 보장합니다.

가격

현재 이 제품은 재고없음 입니다.
그러므로 구매하실 수 없습니다.

옵션 & 수량 & 장바구니

소비자 가격 :

장바구니담기

관심상품담기

구매정보

제품상태 :

재고없음

무이자 할부:

무료배송 :

10만원 이상 구매 시 무료

제품관련 자료

시트

사용자메뉴얼

음향기기 > 음향 > 무대용 오디오툴 > 종류 > 다이렉트박스
음향기기 > 미디/레코딩 > 레코딩아웃보드 > 종류 > 다이렉트박스

제품사진

이 제품의 연관제품

뮤플의 한 마디

“”

제품 상세설명

At dbx, when we do something, we do it right. So when we decided to create our new direct injection boxes, we didn’t settle for the same old tired approach to direct box design. With our dbx name on the line, how could we? One look at our new dB10 Passive and dB12 Active direct boxes will tell you that these are clearly different. With their bullet-proof construction, and extraordinary audio performance to rival their looks, finally there’s a direct box worthy of the dbx name.

Utilizing custom dbx mu-metal-shielded audio transformers, high-quality Neutrik® connectors, and low-noise circuitry preserves the sonic integrity and true characteristics of the signal source. Both boxes include a pad switch that accomodates instrument, line and even speaker level signals. Take even more control of your sound by utilizing the polarity invert switch to set the phase relationship between the direct and mic'd sound.

As a professional, you don’t have time for interference, so we’ve included a ground lift switch to solve potential hum and buzz problems due to ground loops. And between the combined shielding of the cast metal chassis and the custom-wound transformer, you can be doubly assured of a clean signal free from interference. All of this sits atop a solid, stable footprint, that will keep the box from being dragged around the stage, and the unique contoured underside allows secure stacking of multiple units.



제품특성

내구성이 강한 고무 지지대를 갖고 있으며 여러 기기를 쌓을 수 있는 섀시

- 탁월한 성능, 견고한 디자인

- 금도금 NEUTRIK XLR 컨넥터

- 고급 크롬 변환 스위치

- Hi-Z 1/4인치 입력 잭

- 병렬 1/4인치 Thru 잭

- 변압기 분리

- 고급 외장 특별 주문 dbx 변압기

- Balanced XLR Lo-Z
상세스펙

INPUT SECTION

Input: 1 instrument/line/speaker level
Connector: 1/4" jack
Type: Unbalanced, RF filtered
Impedance: 150k Ohm typical
Max Input Level: 20dBu (0dB pad)
40dBu (20dB pad)
60dBu (40dB pad)

OUTPUT SECTION

Thru Output: 1 parallel connection from input jack
Connector: 1/4" jack
Type: Unbalanced, RF filtered
Main Output: 1 line level
Connector: XLR male jack
Type: Balanced
Impedance: 150 Ohm typical
Max Output Level: 0dBu

PERFORMANCE

Transformer: Custom dbx mu-metal-shielded
Frequency Response: 20Hz to 20kHz, /-2.5dB
Noise: <-105dB unweighted, 22kHz BW
THD: <0.01%, 20Hz to 20kHz BW
<0.005%, 1kHz

GENERAL

Dimensions: 5.82" L X 5.44" W X 2.20" H (148 x 138 x 56mm)
Weight: 1.4 lbs / 0.65 kg
Note: Specifications subject to change without notice.

스펙

  • Premium Performance
  • Rugged Design
  • Stackable Chassis with Durable Rubber Foot
  • Gold-plated Neutrik® XLR Connector
  • Premium Chrome Toggle Switches
  • Hi-Z 1/4" Input Jack
  • Parallel 1/4" Thru Jack
  • Transformer Isolated
  • Premium Shielded Custom dbx Transformer
  • Balanced XLR Lo-Z Output
  • 3-Way 0/20/40 dB Pad Switch
  • Flat/High-Cut Filter Switch
  • Output Polarity Invert Switch
  • Ground Lift Switch
