TITAN X12

Wharfedale
제품코드 : 4682

가격

도매 할인가격 :
가입안내
뮤플 할인가격 :
할인가격 상담 :
할인가격상담 이란?

옵션 & 수량 & 장바구니

수량 :

소비자 가격 :

장바구니담기

관심상품담기

구매정보

제품상태 :

판매중

무이자 할부:

무료배송 :

10만원 이상 구매 시 무료
음향기기 > 음향 > 스피커 > 종류 > 패시브 스피커
음향기기 > 음향 > 스피커 > 용도 > 일반용

제품사진

이 제품의 연관제품

뮤플의 한 마디

“”

제품 상세설명

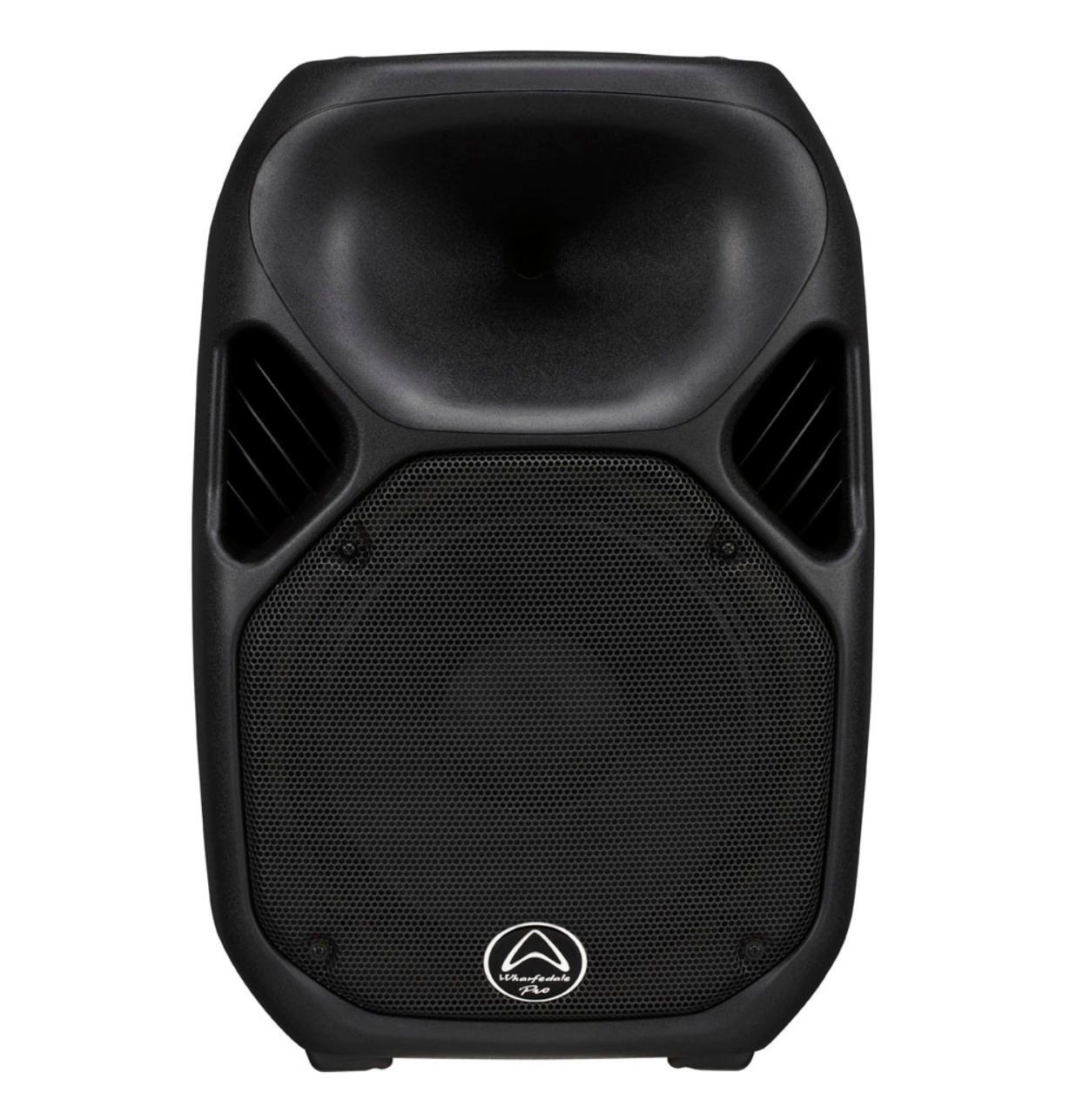

TITAN-X12


Portable, lightweight and durable the Titan X12 is one of our most versatile loudspeakers. Rated at 1000W peak and with 128dB Max SPL, it’s an ideal solution for small to medium sized venues.

We have also tweaked the laminar rib cabinet structure to improve structural strength for durability and acoustic performance. TITAN X12 raises the bar for portable PA and is built to last.


Key Features

  • 250W RMS / 500W Program / 1000W Peak
  • 128dB Max SPL
  • Titanium HF Driver has been honed acoustically for high-frequency detail and power
  • 12" LF Driver rejects moisture for resistance in all environments
  • Proprietary 100° x 80° Hybrid Symmetry Horn design
  • 2.5" LF voice coil
  • Tough, yet lightweight Dynamic Polypropylene cabinet with rubber padded handles

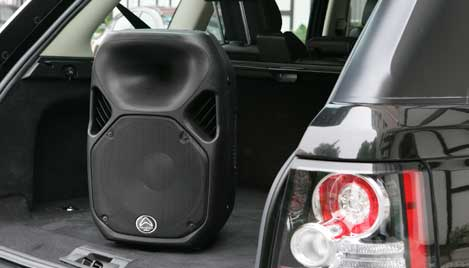

PORTABILITY
There is more demand now than ever for agile sound systems that deliver a similar experience to fixed installation ply wood cabinets. Mobile DJs and bands need to pack everything down into one vehicle while conference rooms need to cater for loud presentations where equipment can be discreet. The Titan range is designed for these applications, without faltering in sound whatsoever. Wharfedale Pro have achieved this by using state of the art, gas assist injection moulding technology, plus an internal laminar flow rib pattern, increasing rigidity and reducing its weight compared with standard injection moulded enclosures.

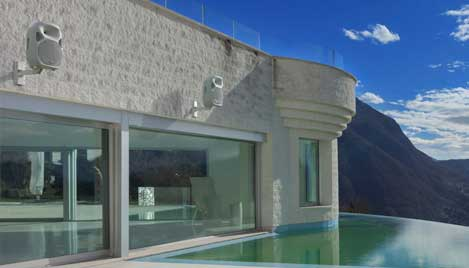

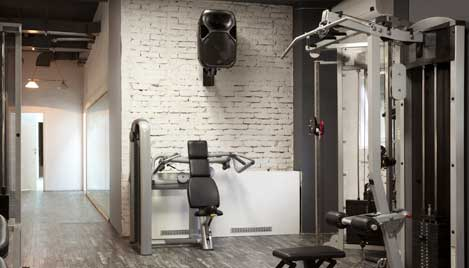

INDOOR AND OUTDOOR INSTALLATION
Although the product weight and rubberised handles are perfect for the mobile musician, this technology also lends itself to installations where weight is an issue, not to mention that the dynamic polypropylene material and moisture proof LF drivers can withstand outdoor conditions. Additional protection can be found with the Titan Tourbags, custom made speaker bags with a unzippable front panel meaning your Titan X12 loudspeaker is always protected.


ENHANCED HIGH FREQUENCY
The high-frequency section has been completely reevaluated in the Titan X12, for both coverage and sound quality. Firstly the HF unit has been strengthened via a rear aluminium cover, which improves heat dissipation for high-pressure audio and prolonged time periods. Wharfedale Pro engineers have paid particular attention to the acoustic properties of the new HF to ensure a much smoother sound, especially at high output. While the high frequencies are clear and detailed, a new custom phase plug has been formed for dimensional stability and accurate phase coherence. Combined with the hybrid symmetry horn, the full range sound of Titan X12 is heard loud and clear to everyone in the crowd.

SPECIFICATIONS

System TypePassive
Configuration12" 2-way
Frequency Response ( /-3dB)55Hz-20kHz
Frequency Response (- 10 dB)50Hz-20kHz
Sensitivity (2.83v/1m)98dB
Calculated Maximum SPL @1m128dB
System Rated Impedance8Ω
Low Frequency Transducer
Size305mm / 12"
Voice-Coil Size64.26mm / 2.5"
Rated Impedance8Ω
LF Power (re:AES2-2012)250w
High Frequency Transducer
HF Driver TypeCompression Driver
Voice-Coil Size44mm / 1.75"
Exit Size25mm / 1"
Diaphragm MaterialTitanium
Rated Impedance8Ω
HF Power (re:AES2-2012)40W
Nominal Coverage (H x V)Hybrid Symmetry Horn 100°x80°
Power
System Continuous Power250W
System Programme Power500W
System Peak Power1000W
Crossover frequency2.6kHz
Input Connector2 x NL4 (speakON compatible)
Hardware35mm Pole Insert with lock screw
2 Handles on sides
M8 x 10 rigging points
Enclosure
Enclosure MaterialTrapezoidal / Polypropylene
FinishBlack / white
Grille Material & Finish1.2mm steel
Dimensions - Unpacked
Height582.7mm / 22.9"
Width Front384.6mm / 15.1"
Width Rear384.6mm / 15.1"
Depth318.6mm / 12.5"
Dimensions - Packed:
Height663mm / 26.1"
Width Front435mm / 17.1"
Width Rear435mm / 17.1"
Depth408mm / 16.1"
Weight
Net Weight12.0kg / 26.4lbs
Gross Weight15.1kg / 33.2lbs





  • 10 x M8 rigging points and integral tripod stand adapter
  • Rugged protective grille and top-stacking receptacles
  • Trapezoid design for arrays as well as stage monitor applications
  • Available in black or white
  • Titan Tourbags available


스펙

System TypePassive
Configuration12" 2-way
Frequency Response ( /-3dB)55Hz-20kHz
Frequency Response (- 10 dB)50Hz-20kHz
Sensitivity (2.83v/1m)98dB
Calculated Maximum SPL @1m128dB
System Rated Impedance8Ω
Low Frequency Transducer
Size305mm / 12"
Voice-Coil Size64.26mm / 2.5"
Rated Impedance8Ω
LF Power (re:AES2-2012)250w
High Frequency Transducer
HF Driver TypeCompression Driver
Voice-Coil Size44mm / 1.75"
Exit Size25mm / 1"
Diaphragm MaterialTitanium
Rated Impedance8Ω
HF Power (re:AES2-2012)40W
Nominal Coverage (H x V)Hybrid Symmetry Horn 100�x80�
Power
System Continuous Power250W
System Programme Power500W
System Peak Power1000W
Crossover frequency2.6kHz
Input Connector2 x NL4 (speakON compatible)
Hardware35mm Pole Insert with lock screw
2 Handles on sidesundefined
M8 x 10 rigging pointsundefined
Enclosure
Enclosure MaterialTrapezoidal / Polypropylene
FinishBlack / white
Grille Material & Finish1.2mm steel
Dimensions - Unpacked
Height582.7mm / 22.9"
Width Front384.6mm / 15.1"
Width Rear384.6mm / 15.1"
Depth318.6mm / 12.5"
Dimensions - Packed:
Height663mm / 26.1"
Width Front435mm / 17.1"
Width Rear435mm / 17.1"
Depth408mm / 16.1"
Weight
Net Weight12.0kg / 26.4lbs
Gross Weight15.1kg / 33.2lbs

제품사진

사용자평가

▼ 피드백 더보기

리뷰

질문과 답변

음향기기 > 음향 > 스피커 > 종류 > 패시브 스피커
4682
TITAN X12
음향기기 > 음향 > 스피커 > 종류 > 패시브 스피커음향기기 > 음향 > 스피커 > 용도 > 일반용
450000.0000
KRW
4
5
이번에 교회 교육부서실 음향교체공사를 하면서 이 제품을 넣었습니다.
일단은 외형적인 색깔이 제일 마음에 들어요~ㅎㅎ
교회 부흥회 중에 임시로 모니터 대신 사용해 봤는데요~
작은 공간에서 사용하기에 편합니다.
그리고 모니터로도 손색은 없는 것 같아요~
물론 저가형이라는 점은 충분히 고려해야겠지만요~
그냥 아무렇게나 쓰기 편한거 같아요!
4.0
1
