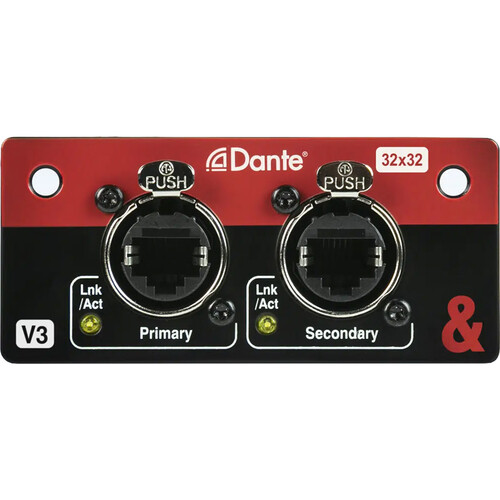

The Allen & Heath SQ Dante 32x32 is a Dante module for SQ-series mixers and AHM matrix processors, allowing for the digital connection to compatible amplifiers, preamps, or other devices on a Dante network. Up to 32x32 channels can be routed in or out. The SQ Dante 32x32 card can be switched between 96 or 48 kHz to accommodate Dante networks running at either sample rate. In addition to facilitating system integration, the card also enables digital splits and affordable multitrack recording direct to a computer.
- 32×32 channel audio and control over a network
- 96 or 48 kHz operation
- Multichannel recording / playback using Dante Virtual Soundcard (available separately)
- Two ports with redundant and switch modes
- Internal Control Network Bridge
- Locking etherCON connectors
- Dante Domain Manager ready
- AES67 compatible
- Compatible with SQ and AHM
Expand your System with Dante
- An SQ or AHM unit fitted with the Dante option card can seamlessly connect to DT expanders, wireless systems, amplifiers, preamps, and any other devices on your Dante network, making full use of high-resolution 96 kHz audio.
- The SQ Dante card can be switched between 96 or 48 kHz to accommodate Dante networks running at either sample rate. In addition to facilitating system integration, the card also enables digital splits and affordable multitrack recording direct to a computer.
Add Dante to AHM Matrix Processors
- The SQ Dante 32×32 card is the perfect partner to the AHM-32 and AHM-16 Audio Matrix Processors.
- As well as making it easy to integrate AHM processors into existing Dante networks, it also enables use of our Dante enabled expanders, including the compact and portable DT22, DT02, and DT20, the wall-mountable DT164-W, and the DT168 stagebox.
