Introduction:
The Xilica XD-Series is our most complete fixed architecture digital processor.
Building on the success of our original Classic “DLP” family of processors the Xilica XD-Series brings a new level of audio performance and processing power to the world of fixed architecture DSP for live sound production and fixed audio installations.

Designed and engineered in Canada, only Xilica provides a “state of the art” 96kHz 40 Bit Floating Point DSP Engine, High Performance 24 Bit Converters, Precise Algorithms, FIR Crossover Filters and AES/EBU Digital In/Out at this value level. The result is “best in class” audio performance and feature set.

Description:

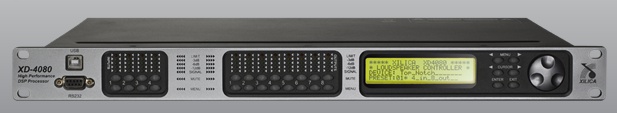

The XD-4080 is a 4 input / 8 output fixed architecture, fully programable, digital, audio system processor. Inputs can be matrix mixed/routed to any or all outputs; Our standard signal processing functions (as listed to the left) are joined by the addition of high performance FIR Crossover Filters and AES/EBU Digital Inputs and Outputs; Ethernet, USB and RS232 connectivity for configuration, control and software/firmware updates is standard; Processor configuration can be accomplished in real time from the front panel or with a computer running our easy to use XConsole software GUI. And with the Ethernet connection and a basic wired or wireless router the XConsole GUI can control individual or multiple XD-Series processors from any location.

Applications:
Critical Front-Of-House Loudspeaker Management; Floor Monitors; Time/Phase Crossover Alignment; Fixed Audio Installations; Recording Studio Monitor Speaker Crossover and EQ; Broadcast Facilities; Delayed Speakers; Zoned Systems; Room Equalization; Acoustic Correction.



Inputs and Outputs
Input Impedance: >10k Ohms
Output Impedance: 50 Ohms
Maximum Level: 20dBu
Type: Electronically balanced
(“M” model version provides switchable mic/line inputs with 48v phantom power)

Audio Performance
Freq Response: /- 0.1dB (20 to 30kHz)
Dynamic Range: 115 dB typ (unweighted)
CMMR: >100dB (50 to 10kHz)
Crosstalk: < -100dB
Distortion: 0.002% (1kHz @ 4dBu)

Digital Audio Performance
Processor (DSP): 40-Bit Floating Point
Sampling Rate: 96kHz
Analog Converters: Super Performance 24-bit
Propogation Delay: 1.5ms
1.75 – 7.75ms with FIR

Audio Control Parameters
Gain: -40 to 15dB in 0.25 dB steps
Polarity: /-
Delay: Up to 650 ms per I/O

Equalisation
Variable Equalizers: 8 per I/O
Type: Parametric, Hi-shelf, Lo-self,
          Phase (1st and 2nd order)
Gain: -30 to 15dB in 0.25dB steps
Bandwith: 0.02 to 2.50 Oct (Q=0.5 to 72)
Graphic EQ: 1 per Input, 31 Band 1/3 Oct steps

Crossover
IIR Filter Type:
2 Individual filters per input & output.
Type - Butterworth, Linkwitz-Riley &
Bessel.

FIR Filter Type:
2 Individual filters per Output.
Type - Multi-Tap.
Slopes: 6 to 48dB per Oct for IIR
50 to1200 Taps for FIR

Compressors and Limiters
1 Compressor per input channel
1 Limiter per output channel
Threshold: -20 to 20dBu
Attack: 0.3 to 100ms
Release: 2 to 32x the attack time
Ratio: 1:1 to 1:40 (Compressor Only)

System Parameters
No. Of Programs: 30
Delay Units: ms, ft, m
Frequency Modes: 36 steps/Oct, 1Hz Resolution
Security locks: Password
Channel names: 6 Characters

Front Panel Controls
Display: 4x26 Characters Backlit LCD
Level meters: 5 Segment LEDs
Buttons: 12 Mute/Channel Controls
                 6 System Menu Controls
                 1 Dial Encoder

Connectors
Analog: 3-pin XLR
(All XD8080 models use Phoenix type input/output connectors in place of XLR’s)
Digital: 25-pin DB-25 (AES/EBU)
RS-232: Female DB-9
USB: Type B
Ethernet: Standard CAT-5
Power: Standard IEC Socket

General
Power: 90-265 VAC (50/60Hz) – 20VA
Dimensions: 19”x1.75”x9” (483x44x229mm)
Weight: 10 lbs / 4.6 Kg
EAN Code: 885799100014
Designed and Engineered in Canada
Warranty: 2 Years Parts and Labour

Note: specifications subject to change without notice
