AM5212/64

JBL
제품코드 : 7999

특징

2-Way Loudspeaker System with 1 x 12 LF

가격

현재 이 제품은 단종 입니다.
그러므로 구매하실 수 없습니다.

옵션 & 수량 & 장바구니

소비자 가격 :

장바구니담기

관심상품담기

구매정보

제품상태 :

단종

무이자 할부:

무료배송 :

10만원 이상 구매 시 무료
음향기기 > 음향 > 스피커 > 종류 > 패시브 스피커
음향기기 > 음향 > 스피커 > 용도 > 일반용

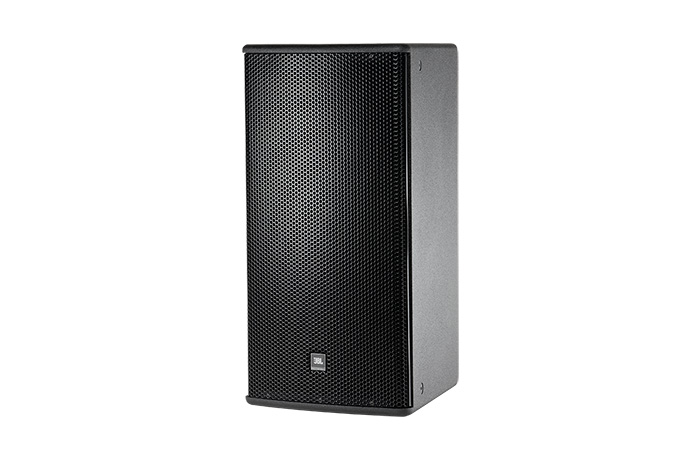

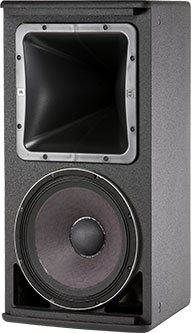

제품사진

이 제품의 연관제품

뮤플의 한 마디

“”

제품 상세설명


Imagine if your every need was not only met, but anticipated. The Application Engineered Series does exactly that. The AE Series is a complete line of permanent installation loudspeakers, containing the performance and features that meet the needs of contractors and consultants alike. Incorporating the latest loudspeaker technology, a wide selection of models, high performance features, reliability, and a systems approach. AE Series has a loudspeaker for just about any challenge you might encounter.

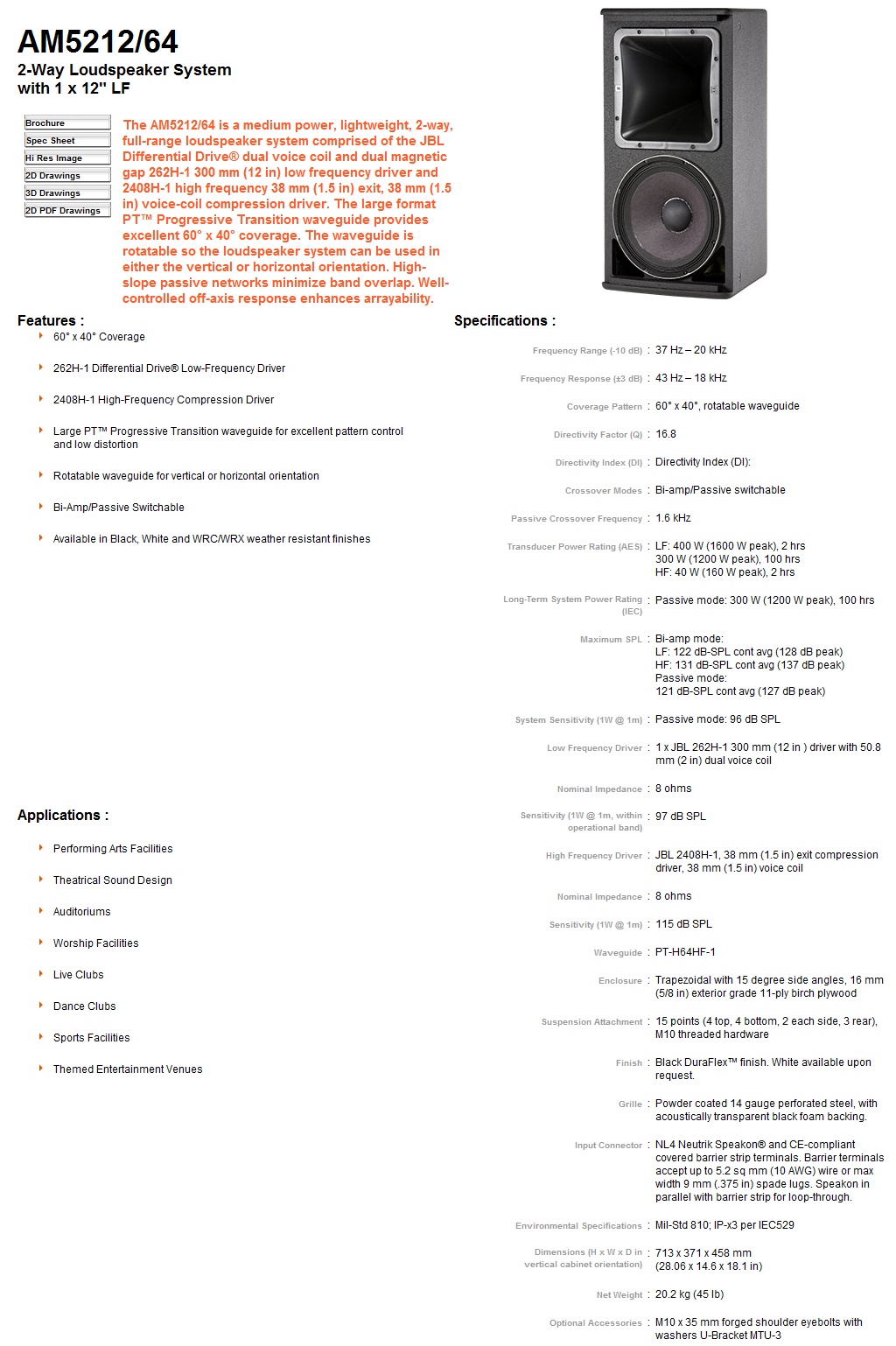

스펙

Frequency Range (-10 dB)37 Hz – 20 kHz
Frequency Response (�3 dB)43 Hz – 18 kHz
Coverage Pattern/64: 60� x 40� /66: 60� x 60� /95: 90� x 50� /00: 100� x 100� /26: 120� x 60�
Crossover ModesBi-amp/Passive switchable
Passive Crossover Frequency1.5 kHz
Transducer Power Rating (AES)LF: 400 W (1600 W peak), 2 hrs / 300 W (1200 W peak), 100 hrs / HF: 40 W (160 W peak), 2 hrs
Long-Term System Power Rating (IEC)Passive mode: 300 W (1200 W peak), 100 hrs
Maximum SPLBi-amp mode: LF: 122 dB / HF: 131 dB
System Sensitivity (1W @ 1m)Passive mode: 96 dB SPL
Low Frequency Driver1 x JBL 262H-1 300 mm (12 in) driver with 50.8 mm (2 in) dual voice coil
Nominal Impedance8 ohms
Sensitivity (1W @ 1m, within operational band)97 dB SPL
High Frequency DriverJBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil
Nominal Impedance8 ohms
Sensitivity (1W @ 1m)113 dB SPL
WaveguidePT-H126HF-1
EnclosureTrapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
FinishBlack DuraFlex™ finish. White available upon request.
GrillePowder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Input ConnectorNL4 Neutrik Speakon� and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Environmental SpecificationsMil-Std 810; IP-x3 per IEC529
Dimensions (H x W x D invertical cabinet orientation)713 x 371 x 458 mm (28.06 x 14.6 x 18.1 in)
Net Weight20.2 kg (45 lb)
Optional AccessoriesM10 x 35 mm forged shoulder eyebolts with washers U-Bracket MTU-3

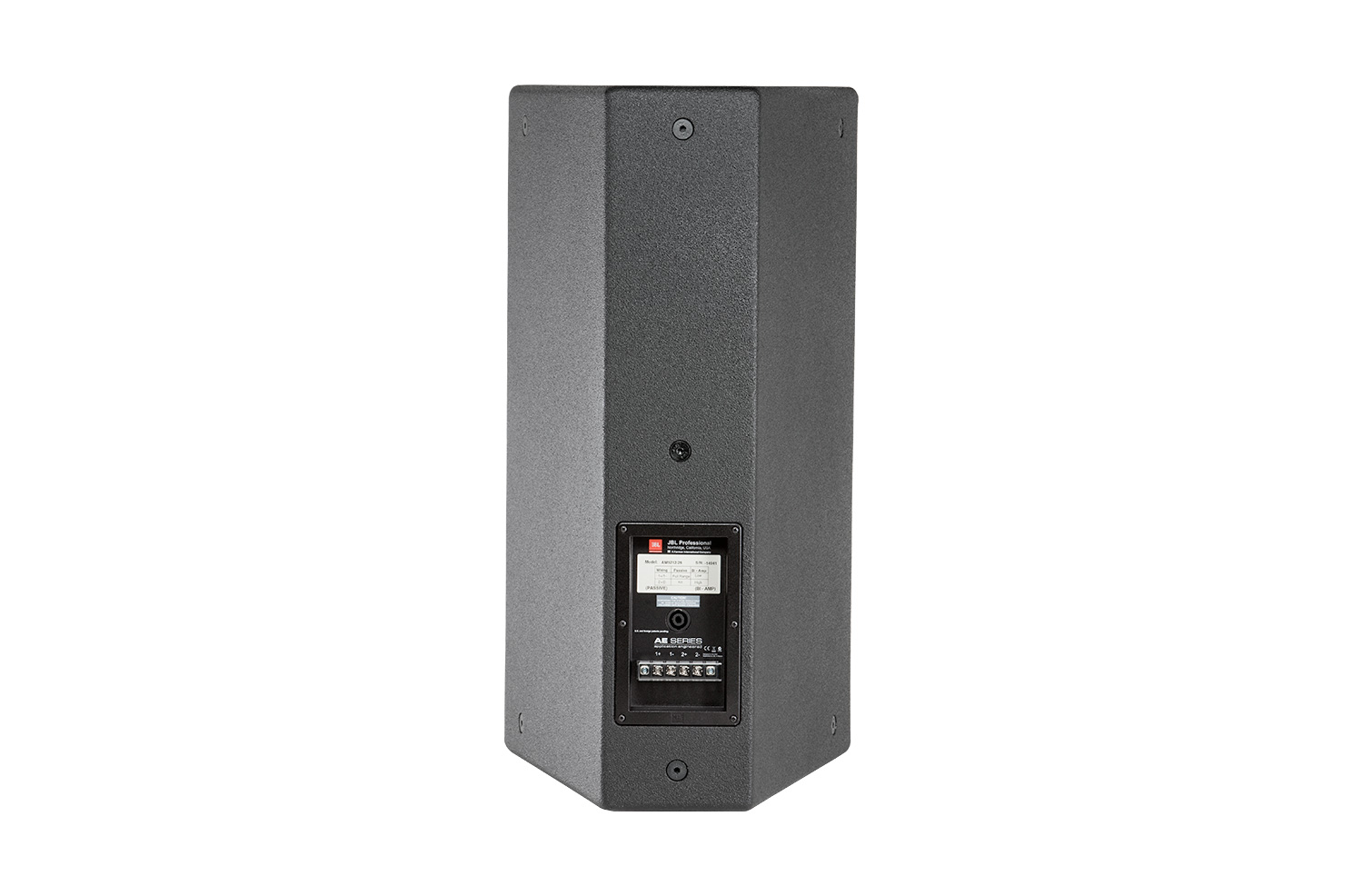

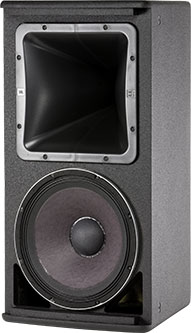

제품사진
