COMMANDING PERFORMANCE
COMPELLING VALUE

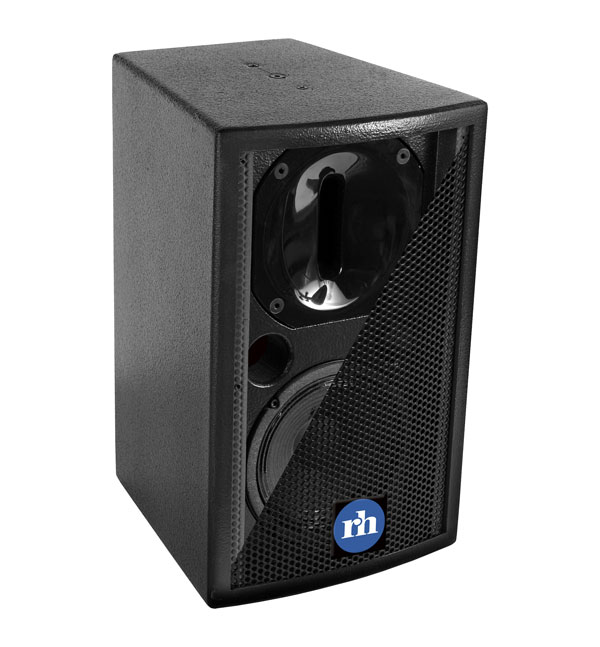

Sound that makes performances and audiences truly come alive doesn’t come easy. But CF & CFX Series loudspeakers put the power of unique Renkus-Heinz developments like Complex Conic Horns to work for you. Versatile enclosure designs, go-anywhere hardware and rugged construction help solve your sound reinforcement challenges easily and quickly. Advanced options like intelligent onboard amplification and RHAON — the Renkus-Heinz Audio Operations Network — help you build sophisticated sound systems that are easy to use.

Every CF & CFX Series loudspeaker is engineered by Renkus-Heinz to unrivaled standards of quality and innovation. Before we’ll ship them, your loudspeakers have to meet our exacting requirements, for performance that will make you proud and durability that will keep you sounding great.

• High Volume Output, Small Enclosures 80 Hz to 20 kHz ±3 dB: Outstanding, full-range performance in an extremely compact, space-saving design. • Flexible Input Configurations Choose passive inputs, or go self-powered with the PF1-200 series intelligent amplifier, either with or without RHAON net working. • RHAON Audio Operations Network Self-Powered CF61-2R cabinets are RHAON empowered for flexible digital signal distribution, loudspeaker management and control using standard Ethernet hardware and cabling. • Exclusive 150° by 60° Complex Conic Design Provides constant beamwidth/directivity without the problems of conventional rectangular horns; can be rotated 90° within the cabinet for wide or deep listening spaces. • 1" Extended Range Titanium HF Driver Provides smooth, low distortion high frequency performance to 20 kHz and beyond. • Heavy-Duty 6.5" Woofer Easily handles 120 Watts of program power.

PF Series Intelligent Amplifiers

Passive, powered or networked: you can choose the CF/CFX system that suits your needs at any time. At the factory or in the field, the CFX passive connector plate can be easily replaced by a PF1-200 series Class D digital amplifier with loudspeaker specific processing. The PF1-200’s lightweight switching power supply delivers 70% efficiency at full output, reducing AC requirements and eliminating the need for a cooling fan.

Whenever you are ready for Ethernet audio networking, your CF/CFX loudspeakers are, too; just replace the connector plate or the PF1-200 with a PF1-200R RHAON empowered amplifier equipped for connection to the Renkus-Heinz Audio Operations Network. RHAON empowers you with CobraNet digital audio distribution, user configurable DSP for maximum control, remote systems management from any Windows computer, life safety functions and more – all using standard Ethernet hardware and cable. Ready now for a self-powered CF61 System? Order the CF61-2. If you need digital audio distribution and full audio operations networking, order the RHAON empowered CF61-2R.
