AN-16 i

Aviom
제품코드 : 4180

가격

현재 이 제품은 단종 입니다.
그러므로 구매하실 수 없습니다.

옵션 & 수량 & 장바구니

소비자 가격 :

장바구니담기

관심상품담기

구매정보

제품상태 :

단종

무이자 할부:

무료배송 :

10만원 이상 구매 시 무료
음향기기 > 음향 > 믹서 > 종류 > 디지털 퍼스널모니터

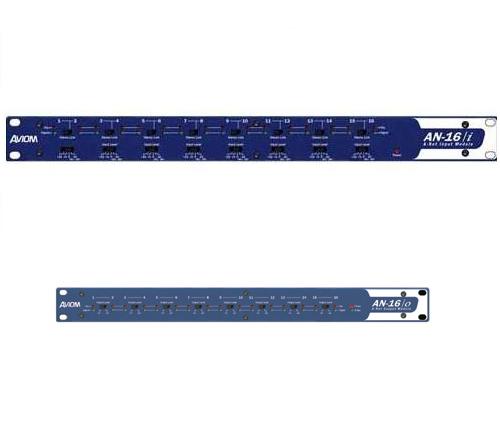

제품사진

이 제품의 연관제품

뮤플의 한 마디

“”

제품 상세설명

  AN-16/I-EB 인풋 모듈 특징
  • 16개 밸런스드 오디오 인풋(Euroblock 커넥터)
  • A-Net Out & A-Net 확장 네트워크 연결( Cat-5)
  • 각 채널 pair 당 스테레오 링크 스위치
  • 4개 게인 스위치 ( 22, 4,0,-10dB)
  • 1U 랙 포함

    AN-16/o-EB 아웃풋 모듈 특징

  • 16 밸런스드 오디오 아웃풋 (Euroblock 커넥터)
  • A-Net In & A-Net Out, A-Net확장 네트워크 연결
  • 2개 게인 스위치 ( 4,-10dB)
  • 1U 랙 포함

  • Sixteen balanced audio outputs with DB25 multipin connectors
  • A-Net In, A-Net Out, and A-Net Expansion network connections
  • Two-position output level switch per channel pair (mic level or line level)
  • Signal and Clip LEDs
  • Heavy duty locking Neutrik EtherCon connectors

    •

    The AN-16/o provides sixteen balanced mic- or line-level analog outputs, with switchable output levels per channel pair. Audio outputs feature secure DB25 multipin connectors. With both mic- and line-level outputs available, connecting to a console is simpler and more flexible.

    The AN-16/o can be used both on stage and at front of house to provide outputs to consoles, as well as to amplifiers and speaker processors. Adding a split for recording or broadcast is as quick as running a Cat-5e cable to the additional locations and connecting additional AN-16/o modules as needed. Any number of AN-16/o Output Modules can be connected in a system, providing unlimited lossless digital splitting of an audio stream.

    The built-in A-Net Expansion jack also allows easy integration into an existing Pro16 Monitor Mixing System, as well as a path for building 32-channel systems (16x16 or 32x0) on a single Cat-5e cable. The AN-16/o is also fully compatible with the AN-16SBR System Bridge, which supports 64-channel systems in a variety of bi-directional configurations. All network connections on the AN-16/o use heavy duty locking Neutrik EtherCon connectors.

    스펙

    Audio Outputs 16 channels, balanced, switchable mic- or line-level
    Outputs DB25 multipin connectors (2); Tascam® audio pinout
    Impedance balanced output
    D/A Conversion 48kHz sample rate, 24 bit
    Frequency Response 4Hz-22kHz
    A-Net Input/Output one EtherCon Category 5 (RJ45 connector)
    A-Net Expansion one EtherCon Category 5 (RJ45 connector)
    Output Level Settings Two-position switch, Line and Mic
    Channel LED Indicators Signal Present and Clip, per channel
    Metering LEDs; green: Signal Present; red: Clip; per channel
    Peak Output Levels 4dBu, -17dBu
    Maximum Output Level 4dBu
    Output Impedance 430 ohms
    Freq. Response 4Hz-22kHz 0.2dB/-3dB
    THD N < 0.003%
    Crosstalk -90dB
    Bit Error Rate (BER) 10(-12)
    Signal to Noise (unweighted) 90dB typical, A/D to D/A
    Measured from AN-16/i to AN-16/o Output Module
    Digital Connections A-Net In: 1; A-Net Out: 1; A-Net Expansion: 1;
    Neutrik EtherCon connectors
    A-Net Pro16

    A-Net Expansion combines two A-Net streams (32 channels of audio) onto one Cat-5e cable
    uses unshielded Cat-5e UTP (or better) cable

    Latency <0.880 msec (measured from analog input to analog output)
    Power Supply
          Input Voltage
          Output Voltage
          Plug Size    		 External, DC, universal switching type
    100-240 volts, 50/60Hz, 30VA
    18-24 VDC, 0.5 amp
    2 mm
    Power 18-24 VDC, 500mA
    Dimensions 19" (482.6 mm) wide x 5.75" (146 mm) deep;
    1U high
    Weight 6.8 lbs. (3.08 kg)
    Options AN-16SBR System Bridge; used to combine up to four A-Net streams for transmission over one Cat-5e cable
