The Pa60 relies on the same HI synth engine found in Korg TRITON and Karma professional workstations. Needless to say, its sound quality is second to none! Included with its 660 sound programs is a new set of very expressive solo instruments, sampled with a natural vibrato. All sounds are fully editable, and simple sound edits can be made inside the sequencer itself. Four studio-quality effect processors are available and feature 89 different effect types.

Musical Styles
The Pa60 provides a huge collection of music Styles created by top musicians from around the world. Each Style provides up to eight accompaniment parts drum, bass, percussion and more that respond interactively with your playing. With 256 editable Styles onboard (plus 48 user Styles) the Pa60 can cover any situation. Eight parts, four Variations, two Fills, two Intros and two Endings per Style provide you all the control needed to create a natural-sounding performance. Need more Styles can be stored to or played from a floppy disk including existing Korg i-Series Styles or an optional internal hard drive. Still more You can download free PC software from www.korgpa.com to convert SMF standard MIDI files into Pa60 Styles. Additional Styles are also available online, free of charge.

Beyond Styles STS and Performance settings
In addition to the eight parts that comprise a Style, up to three sounds are available on the keyboard as real-time parts. You can also play a fourth real-time part on the lower portion of the keyboard when you use the keyboard split function. Each Style contains four STS (Single Touch Settings). With the STS, a single button push will call up new sounds for the real-time parts that are appropriate to the Style. The Pa60 also has room for 160 user defined Performance Memories. Each Performance can instantly recall the sounds, effects, panning, transposition and other settings assigned to each accompaniment part and real time part, adding variety and flexibility to a live performance

Powerful performance features
Each of the four pads on the front panel can be assigned to either a percussion or effect sound. These pads can also be used to provide instant access to a variety of Pa60 functions such as muting the effects, selecting the next Style, or even assigning Quarter Tones on the fly. These functions and many more can also be assigned to an optional footswitch connected to the Pa60. Along with the Joystick; the synchronized start/stop, fade in and out, tap tempo, accompaniment reset and other front panel functions are available at your fingertips.

Extensive sequencing
In addition to the traditional real-time and step-time sequencing available on upper echelon workstations, the Pa60 also features our unique Backing Sequencer, which can capture up to eight tracks of Style accompaniment and up to eight tracks of real time playing in a single pass. This Backing Sequencer data can be edited in powerful and musical ways, speeding the realization of your musical ideas. Where traditional workstations provide an empty palette to start from, the Pa60 Backing Sequencer takes advantage of the accompaniment system to provide you with as little or as much of a band as you need. In performance, nothing beats the revolutionary XDS Dual Sequencer found in the Pa60. With fully independent transport controls for each sequencer and a DJ style crossfader, the Pa60 can provide a seamless and satisfying performance. Our unique ukebox?mode allows you to create various 뱒et lists?so the Pa60 can perform a whole set with you ?nonstop! The Pa60 is completely compatible with GM and SMF files. Lyrics embedded in SMF sequences are shown in the Display.

Rich, stereo sound
Stereo inputs and outputs can be used to connect the Pa60 to other audio equipment. Two dual-cone speakers are housed in an efficient reflex cabinet. Twin 15-Watt amplifiers and an Auto Loudness feature produce a clear and accurate sound reproduction.

Pa60 OPTIONS:
HD1K Hard Drive Installation Kit*
The HD1K is a kit used to install a separately sold hard drive into the Pa60. The Pa60 can accommodate a 2.5?ATA-IEDE style hard drive, providing extensive storage and immediate access to Songs, Styles, Performances, Programs, and more.


Keyboard: 61 notes with velocity
System: OPOS ?Objective Portable Operating System: Multitasking System, load while playing feature.Upgradable Operating System.
SSD Solid State Disk.

Tone Generator: HI synthesis (Hyper integrated synthesis system)
62 voices, 62 oscillators, Filters with resonance

Waveform Memory: 32 Mbyte PCM ROM (Stereo Piano Sound).
Effects: 4 stereo digital Multi-Effect systems(89 effects each)
Programs: More than 660 programs (including GM level 2 programs).
32 drum kits. 128 user programs 64 user drum kits.

Styles: Up to 304 Styles in Solid State Disk.
All reconfigurable; 8 accompaniment tracks.48 user styles.
All Style Performances are programmable (included 4 Single Touch Settings for each style). Direct Floppy Disk/ Hard Disk access.
Compatible with old i-series styles

Styles Controls: 4 Variations,2 Fills,2 Intros,2 Endings,Count In/Break,
Synchro Start/Stop, Tap Tempo/Reset,Fade In/Out,Bass Inversion,
Manual Bass,Tempo Lock, Memory, Accompaniment Volume,Accompaniment Mute, Drum Mapping,Snare & Kick Designation,Single Touch

General Controls: Master Volume,Ensemble, Octave Transpose,Master Transpose,Split Point,Style Change, Tracks Volume, Quarter Tone Pedal Function,Programmable Slider,Joystick,Dial

Multi PAD: 4 assignable pads Stop button
Performance: 80 real-time Performances up to 304 Styles Performances

Song Play: XDS Crossfade Dual Sequencer player:
2 Sequencers with separate Start/Stop, Pause,Rewind and Fast Forward controls. Balance control.Lyrics are displayed on-screen.
Jukebox Function.SMF Direct Player (format 0 and 1)

Song /Backing Sequence: Easy record ?16 tracks ?SMF format

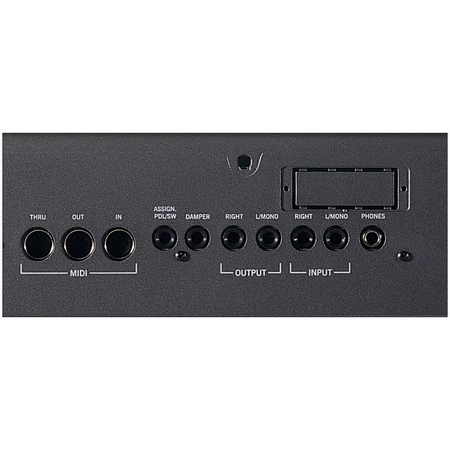

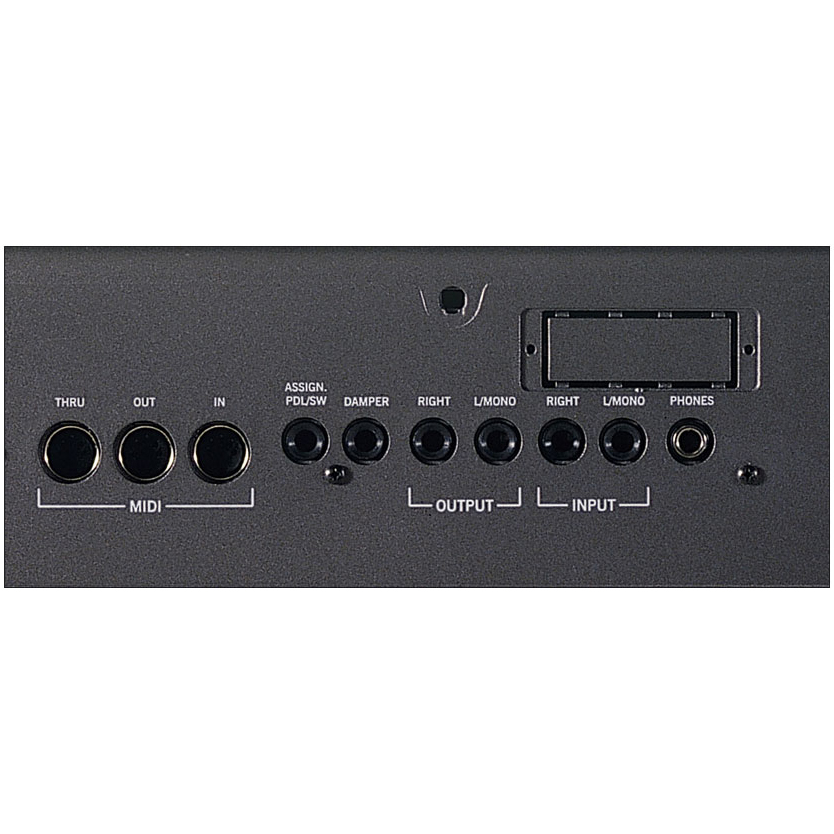

Control Inputs: Damper Pedal, Assignable pedal/switch
Audio Outputs: Left/mono, Right
Audio Inputs: Left/mono, and Right.
MIDI: In, Out, Thru
Floppy Disk: 3.5 inch 2DD/2HD (MS-DOS compatible).
Hard Disk: Optional user-installable Hard Disk (ATA interface).
Maximum formatted area: 2 Gbyte

Display: Backlit custom LCD
Main Amplifier: 2x15 Watt
Speakers: 2 dual cone speakers in Bass Reflex Box with Auto Loudness control
Power Consumption: 35 Watt
Dimensions: W = 43.7", D= 15.3", H = 6.45"
W = 1110mm, D = 388mm, H = 164mm

Weight: 30.6 lbs. 13.9 kg
Accessories: EXP-2 Foot Controller, XVP-10 Exp/Volume Pedal,PS-1 Footswitch,DS-1H Damper Pedal

Option: VIF1 Video Interface board
HD1K Hard Drive installation (Requires 2.5" ATA-EIDE compatible drive)
>
