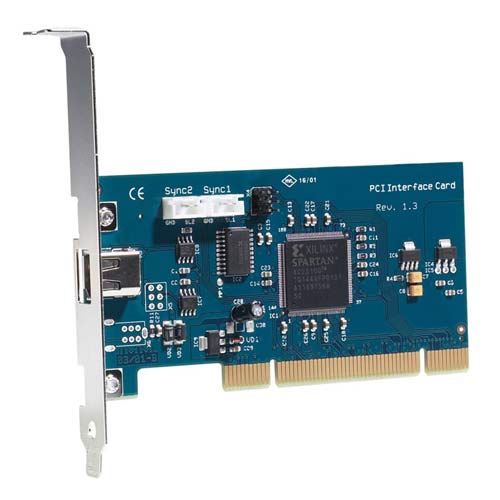

Nuendo Audiolink 96 PCI

The NUENDO AUDIOLINK 96 interface cards establish the connectivity between desktop or laptop computers and the breakout boxes featuring the analog and digital connectivity. Two cards are currently available. One for the PCI slot on desktop computers and one for PCMCIA slots on mobile computers. The connection between Nuendo Audiolink 96 Mobile/PCI and Nuendo Audiolink 96 Digiset/Multiset is established using ordinary firewire cable (Closed LAN to IEEE 1394).

The PCI engine of the Nuendo Audiolink 96 PCI (the card is based on the legendary Nuendo 96/52 ) is built on a Zero wait state PCI Busmaster core. With up to 130 MB/s transfer rate in both directions the maximum performance available on the 32 bit PCI bus is achieved.


Features
· Short PCI 2.0 compliant PCI card
· Zero wait state PCI Busmaster interface
(130 MB/s transfer rate)
· Zero CPU load
· 32 bit, 3.3 V compatible
· Output: IEEE 1394 connector
