UP15

Yorkville
제품코드 : 12050

특징

Unity Stereo Processor

가격

현재 이 제품은 재고없음 입니다.
그러므로 구매하실 수 없습니다.

옵션 & 수량 & 장바구니

소비자 가격 :

장바구니담기

관심상품담기

구매정보

제품상태 :

재고없음

무이자 할부:

무료배송 :

10만원 이상 구매 시 무료

제품관련 자료

메뉴얼

음향기기 > 음향 > 아웃보드 > 종류 > 크로스오버

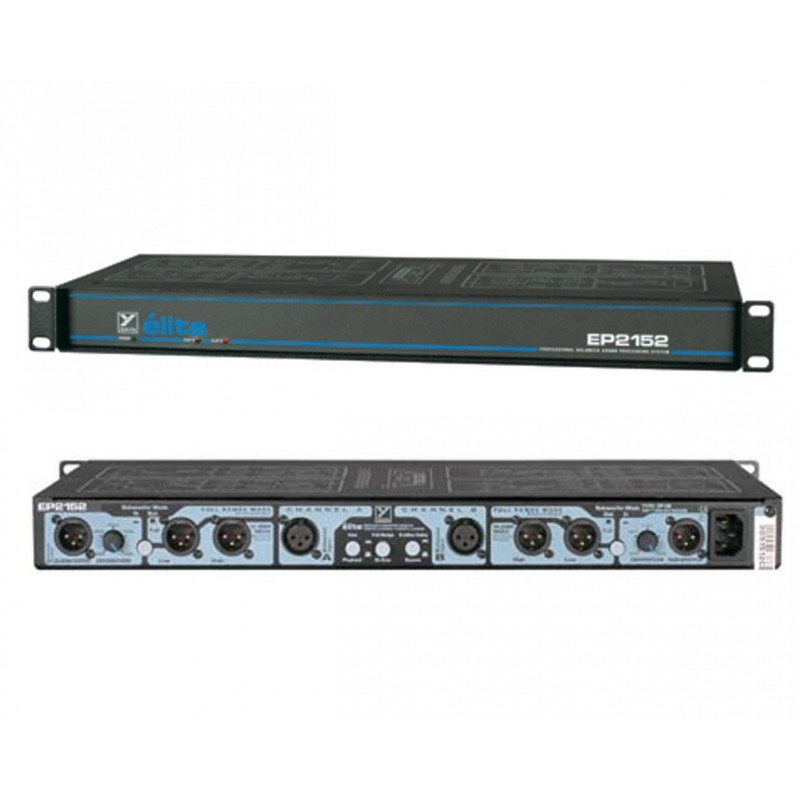

제품사진

이 제품의 연관제품

뮤플의 한 마디

“”

제품 상세설명




Every Unity enclosure can be used with an optional, dedicated stereo processor, which is designed to optimize the performance of that specific cabinet. The 19" rack-mountable processors interface between the output of the mixer and the input of the power amplifier(s) to provide both pre-equalization and crossover facilities, plus enhanced subsonic protection and hum-rejection.

Subwoofer outputs feature user variable 90Hz to 150Hz crossover frequency controls. Bass frequencies destined for the full-range enclosure's woofer, which are more effectively reproduced by the subwoofer, are rolled off. A two or three way system can be achieved by adding a subwoofer to your existing lite system. Additional features include push buttons for live/playback mode, bi-amp/full range mode and subwoofer in/out.

All processors feature balanced 1/4" TRS (XLR optional) inputs and outputs and can be used with all Yorkville subwoofers they are even compatible with our competitor's subs! All feature a signal-to-noise ratio of better than 97dB and a max output of 8Vrms, 20dBm at 1kHz.

Question - If Im not bi-amping the system, do I still need the processor?

Answer - Unity boxes do sound great on their own, without much tweaking or external processing. The simple answer is no, you dont absolutely need it, as much as you may want it after trying the system with and without the processor.

Confused? Dont be. In reality, all of the Unity cabinets will operate just fine without the processor in the system. There is a tuned passive crossover network in every lite loudspeaker, and the component protection is part of that crossover network. (Unlike the processed TX systems where that processor is the only crossover system, and is integral to protect the components.)

However, there are advantages to having that processor around.

First of all, the lite processors are designed for specific cabinets and must be used in the right combination. If youre using the U15 then there is the UP15 processor, likewise the U215 should have a UP215 processor. The reason for this is that our processors provide a proper overall pre-EQd tone and are tweaked for their specific cabinets. They take into account the cabinets design characteristics and know where to boost and to cut some frequencies for optimum even and most efficient response.

When using Unity cabinets with subwoofers, the processor becomes the active crossover as well. Again, it optimizes the frequency response of the top cabinet, taking into account that there is a subwoofer present, and properly crosses over and phase aligns the system. Simply throw the switch on the processor from one-way to two-way mode and the crossover kicks in, the top box becomes smooth mids and highs only, and you have a balanced output to feed the low frequency program to a subwoofer system.

Larger Unity cabinets like the U215, and U15 can be bi-amped internally and the processor is by far your most cost effective solution. Again, by switching into three-way mode in a U215 the processor EQs for the bi-amped system set up, and provides balanced outputs to feed the multiple amplifier array.

General Specifications:
Variable Crossover frequencies with Subwoofer - 90 - 150 Hz
Distortion - <0.01%
Signal to Noise - >100 dB
Maximum Output Level @ 1kHz - 8 Vrms, 20 dBu
Clip LED Activation Level @ 1kHz5 Vrms - 16 dBu
Maximum Input Level - 3.4 Vrms, 12.5 dBm
Subwoofer OUT @ 90 Hz
Maximum Input Level 4 Vrms, 13.5 dBm
Subwoofer IN @ 50 Hz
Power Consumption - 50 mA
Weight - 6 lbs / 2.75 kg
