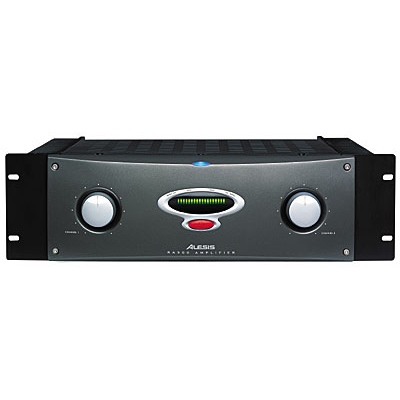

RA-500

Alesis
제품코드 : 1097

가격

현재 이 제품은 단종 입니다.
그러므로 구매하실 수 없습니다.

옵션 & 수량 & 장바구니

소비자 가격 :

장바구니담기

관심상품담기

구매정보

제품상태 :

단종

무이자 할부:

무료배송 :

10만원 이상 구매 시 무료
음향기기 > 미디/레코딩 > 모니터링 스피커 > 종류 > 모니터스피커앰프

제품사진

이 제품의 연관제품

뮤플의 한 마디

“”

제품 상세설명

* 높이: 3 RU
* 출력 등급:
4 ohms: 250 watts RMS per channel
8 ohms: 150 watts RMS per channel
8 ohms: 500 watts RMS, bridged mode
* S/N 비: >105dB
* 주파수 반응:10Hz - 70kHz 0, -3dB
* 디스토션: < 0.02% @ 4ohms, 20Hz - 20kHz
* 입력: 4dB for rated output
* Crosstalk: -85dB, 1kHz
* 출력 오프셋: /- 50 mV, Servo controlled

Power Amplifiers
Models: RA150, RA300 and RA500

Three powerful new additions to
Alesis’ popular RA series.

Alesis’ RA100 power amplifier has long been a favorite choice of musicians, hobbyists and professionals alike. Now Alesis extends the RA’s range throughout the recording and production spectrum with a bold new series of affordable amps in three distinct power ratings.
With their rugged construction, striking good looks – among the first examples of Alesis’ groundbreaking new approach to industrial design – and a long list of features, the new RA series will quickly find a home in project and commercial recording studios, broadcast an post-production control rooms around the world.

Popular prices, powerful performance.

Even with the increasing use of powered speakers, many popular speakers and headphones still require external amplification.
These new amps are designed to provide more power and better performance at a lower overall cost per watt than even our own RA100 – as well as any other competing models. As a result, they can more closely match the power needs of virtually any passive speaker or studio monitor, offering a significantly better fit for an exceptionally wide range of budgets, applications and customers. And providing a crisp, clean signal for outstanding performance and extended speaker life.

Cool, quiet operation.

Designed for studio use, each RA series amp incorporates advanced convection cooling for heat dissipation. The result is long, stable operation unaffected by heat-related complications, without the added distraction and annoyance of fan cooling. And eliminating the danger of losing hard-to- hear details due to noisy amp performance.

The new leaders in affordable studio amplification.

Three new RA series amps – RA150, RA300 and RA500 – providing a bold and powerful answer to the question, “What’s next from Alesis?” Combined with our popular RA100, they offer a wide range of high-quality,
popularly priced solutions for virtually any – and every – situation.




스펙

Size
18.9" W x 5.63" H x 10.71" D
(480mm x 143 mm x 272 mm)

Rack Units

3RU Height

Weight

28.5lbs = 13.0Kg

Rated output, per channel
4 ohms @ 1kHz, .02% THD N
250 watts RMS per channel
8 ohms @ 1kHz, .05% THD N
150 watts RMS per channel
8 ohms, bridged mono mode
500 watts RMS

Signal to Noise Ratio
105dB, 22Hz-22kHz bandwidth referenced to rated output

Frequency Response
10Hz – 70kHz 0, -3dB

Damping Factor
200

Slew Rate
60 V/μs (two channel), 120 V/μs (bridged mono)

Input Sensitivity
4dBu (1.23 V) for rated output with input control at maximum

Maximum input level
26 dBu

Input impedance
20k Ω, balanced, 10 kΩ unbalanced

Crosstalk

85dB, 1kHz

All measurements done over a 20Hz-22,000Hz range with 1KHz sine wave at Full Scale, except for the dynamic range which was done with a -60dBFS 1KHz sine wave.
