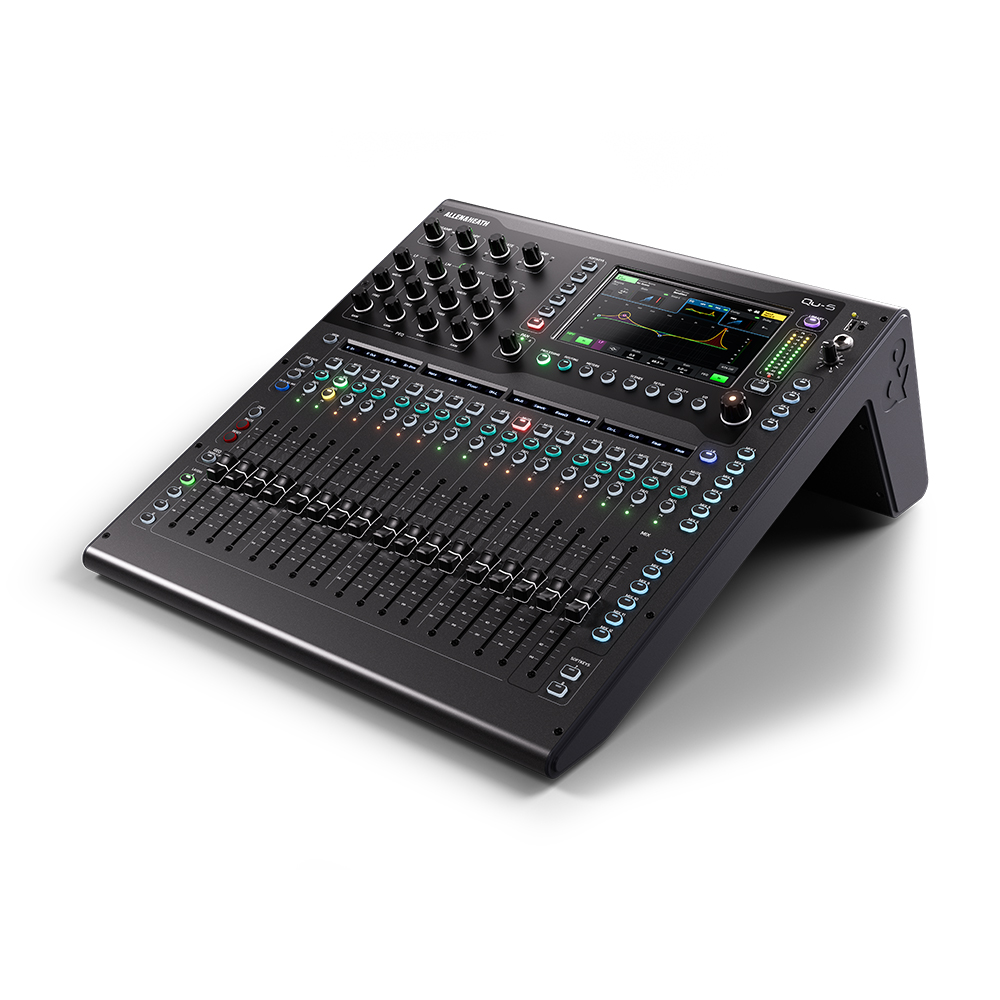

QU-16C

Allen&Heath
제품코드 : 8840

가격

소비자 가격 :
₩3,180,000
도매 할인가격 :
가입안내
뮤플 할인가격 :
할인가격 상담 :
할인가격상담 이란?

옵션 & 수량 & 장바구니

수량 :

소비자 가격 :

장바구니담기

관심상품담기

구매정보

제품상태 :

판매중

무이자 할부:

구매 혜택 :

1590W 증정

무료배송 :

10만원 이상 구매 시 무료

제품관련 자료

한글설명서

음향기기 > 음향 > 믹서 > 종류 > 디지털 믹서

제품사진

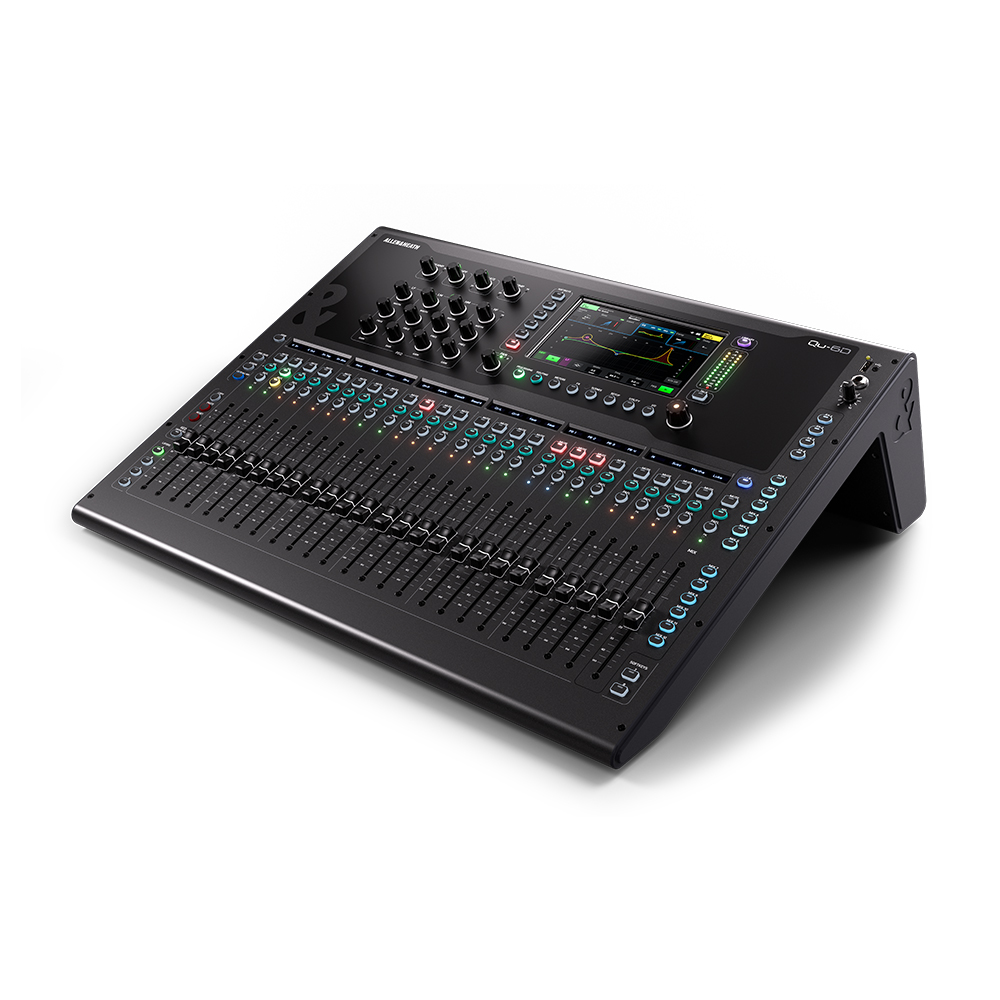

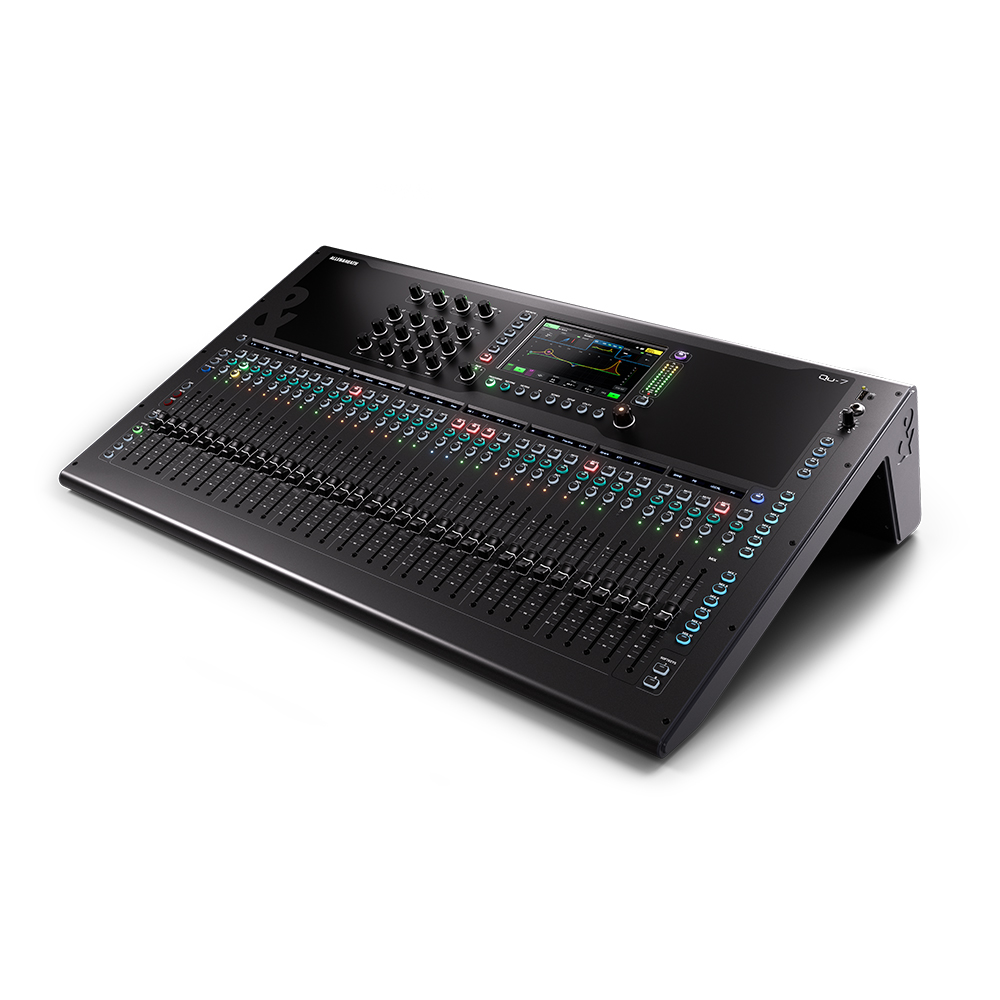

이 제품의 다른 시리즈 제품

뮤플의 한 마디

“”

제품 상세설명



스펙

Inputs

❖ XLR Mic/Line Inputs 1‐16 : Balanced, 48V phantom power
• Mic/Line Preamp : Fully recallable
• Input Sensitivity : ‐60 to 5dBu
• Analogue Gain : ‐5 to 60dB, 1dB steps
• Maximum Input Level : 19dBu
• Input Impedance : >5kΩ

❖ TRS jack Line inputs 1‐16 : Balanced
• Input Sensitivity : ‐50 to 20dBu
• Analogue Gain : ‐10 to 60dB, 1dB steps
• Maximum Input Level : 29dBu
• Input Impedance : >10kΩ

❖ Stereo ST1, ST2 Line Inputs : Balanced, 1/4" TRS jack
• Mono capability : L normals through R for Mono input
• Input Sensitivity : Nominal 4dBu
• Trim : /‐24dB
• Maximum Input Level : 22dBu
• Input Impedance : >7kΩ

❖ Stereo ST3 Line Input : Unbalanced, 3.5mm Mini Jack
• Input Sensitivity : Nominal 0dBu
• Trim : /‐24dB
• Maximum Input Level : 18dBu
• Input Impedance : >7kΩ

❖ Mic/Line Channel noise : 20‐20kHz, Direct Out
• Mic EIN : ‐126 dB with 150Ω source
• Unity gain : 0dB ‐92 dBu
• Mid gain : 30dB ‐85 dBu

❖ Mic/Line Channel THD N : 20‐20kHz, Direct Out @0dBu 1kHz
• Unity gain : 0dB 0.0005 % ‐89 dBu
• Low gain : 10dB 0.001% ‐83dBu
• Mid gain : 30dB 0.001% ‐83dBu

❖ Talkback Mic Input : Balanced, 48V phantom power
• Input Sensitivity : ‐55 to 6dBu
• Maximum Input Level : 10dBu
• Input Impedance : >5kΩ

Outputs

❖ Mix1‐10 and LR Outputs : Balanced, XLR
• Output Impedance : <75Ω
• Nominal Output : 4dBu = 0dB meter reading
• Maximum Output Level : 22dBu
• Residual Output Noise : ‐90 dBu (muted, 20‐20kHz)

❖ Stereo Alt Output : Balanced, 1/4" TRS jack
• Source : Patchable
• Output Impedance : <75Ω
• Nominal Output : 4dBu = 0dB meter reading
• Maximum Output Level : 22dBu
• Residual Output Noise : ‐92 dBu (mid level, source muted, 20‐20kHz)

❖ Stereo 2Trk Output : Balanced, 1/4" TRS jack
• Source : LR post‐fade
• Output Impedance : <75Ω
• Nominal Output : 4dBu = 0dB meter reading
• Maximum Output Level : 22dBu
• Residual Output Noise : ‐90 dBu (muted, 20‐20kHz)

❖ AES Digital Output : 2 channel, XLR
• Sampling rate : 48kHz
• Output : 2.5Vpp balanced terminated 110Ω

System
• Measured balanced XLR in to XLR out, 0dB gain, 0dBu input
• Dynamic Range : 112 dB
• System Signal to Noise : 90 dB (@ 4dBu, 22Hz ‐ 22kHz)
• Frequency Response : 0/‐0.5dB 20Hz to 20kHz
• Headroom : 18dB
• Internal operating Level : 0dBu
• dBFS Alignment : 18dBu = 0dBFS ( 22dBu at XLR output)
• Meter Calibration : 0dB meter = ‐18dBFS ( 4dBu at XLR out)
• Meter Peak indication : ‐3dBFS ( 19dBu at XLR out), multi sensing
• Meter Signal indication : ‐48dBFS (‐26dBu at XLR out)
• Main meter Type : 12 LED, Fast (peak) response
• Strip meter Type : 3 LED, Fast (peak) response
• Sampling Rate : 48kHz /‐100PPM
• ADC : 24‐bit Delta‐Sigma
• DAC : 24‐bit Delta‐Sigma
• Latency : 1.2 ms (local XLR in to XLR out)
0.7 ms (local XLR in to AES out)
• Operating Temperature Range : 0 deg C to 35 deg C (32 deg F to 95 deg F)

USB Audio
❖ Qu‐Drive Stereo : Q‐Drive
• Device : USB hard drive required for recording
• Stereo Record : 2 channel, WAV, 48kHz, 24‐bit, patchable
• Stereo Playback : 2 channel, WAV, 44.1/48kHz, 16/24‐bit, to ST3

❖ Qu‐Drive Multitrack : Q‐Drive
• Device : USB hard drive only
• Multitrack Record : 18 channel, WAV, 48kHz, 24‐bit CH1‐16 patchable stereo pair
• Multitrack Playback : 18 channel, WAV, 48kHz, 24‐bit CH1‐16, ST1

❖ USB B Streaming USB 2.0 MAC compliant only
• Send (upstream) : 24 channel, WAV, 48kHz, 24‐bit
• Return (downstream) : 22 channel, WAV, 48kHz, 24‐bit

Mains Power
• Qu‐16 : 100‐240V AC, 50/60Hz, 82W max
• Fuse rating : T1.6 AL 20mm

Dimensions and Weights
❖ Qu‐16 Mixer : Width x Depth x Height
• Desk mounted : 440 x 500 x 186 mm (17.4" x 19.7" x 7.4")
• Rack mounted : 483 x 486 x 190 mm (19" x 19.1" x 7.5"), 11U
• Packed in shipping box : 610 x 680 x 380 mm (24" x 27" x 15")
• Packed weight : 13.5 kg (30 lbs)
• Unpacked weight : 10 kg (22 lbs)
