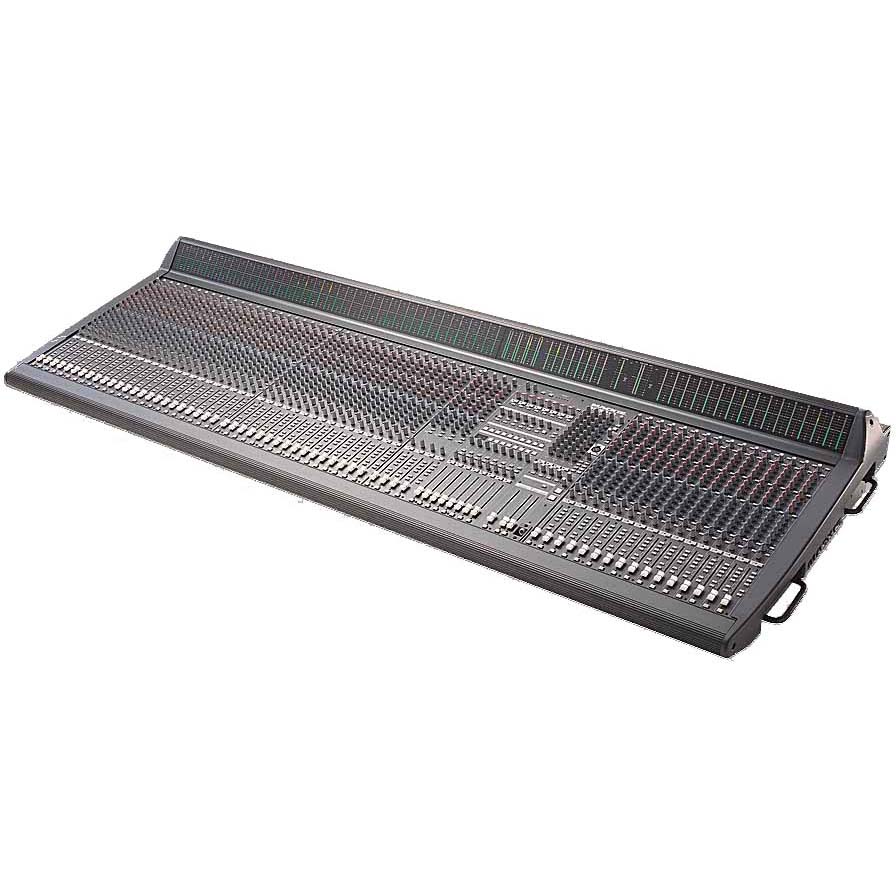

?40 (or 56) x 8 x 3 large-format console with L-R and Center mains
?Center master scetion
?8 buses
?8 aux sends
?4 main stereo aux returns and 4 "B" stereo aux returns
?4-band EQ with High and Low sweepable mids (fixed 4-band on stereo aux returns)
?Sweepable low cut filter (fixed on stereo aux returns)
?Channels assignable to Subs 1-8, L, R and Center
?100mm log-taper faders with new "monorail" design for precise, consistent fades
?Flip switch for stage monitor applications: exchanges the master control of any aux send to a corresponding group fader, allowing the aux send to use the sub’s fader, "Air" EQ circuit, inserts, 100mm fader, insert jacks, and balanced outputs
?Air" EQ circuit on all 8 subs for extra high-end clarity

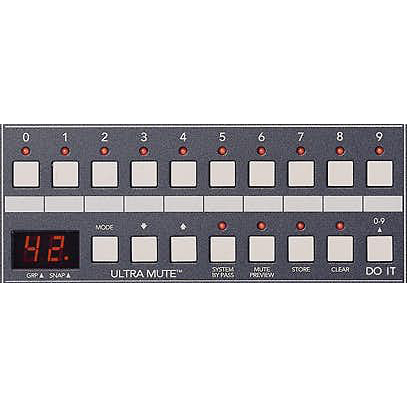

?UltraMute?computerized group and snapshot muting of all mutes including mono channels, aux returns, subs, and more
?"B" aux returns and tape returns

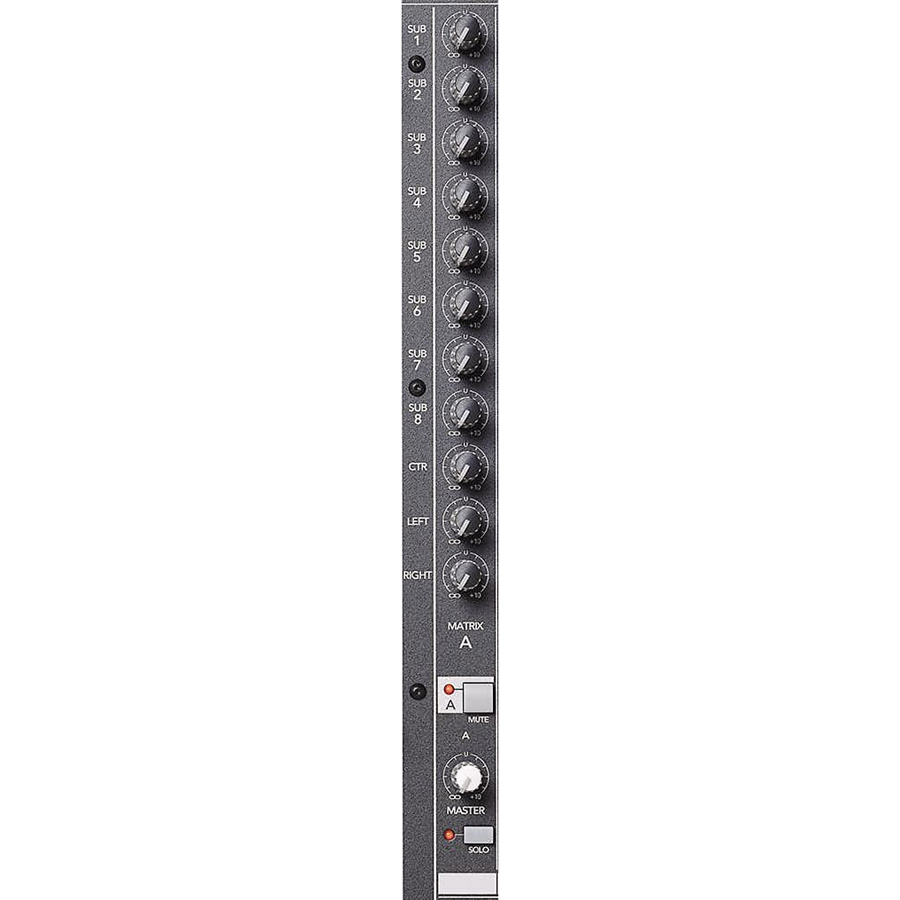

?12 x 4 matrix mixer
?Power status LEDs

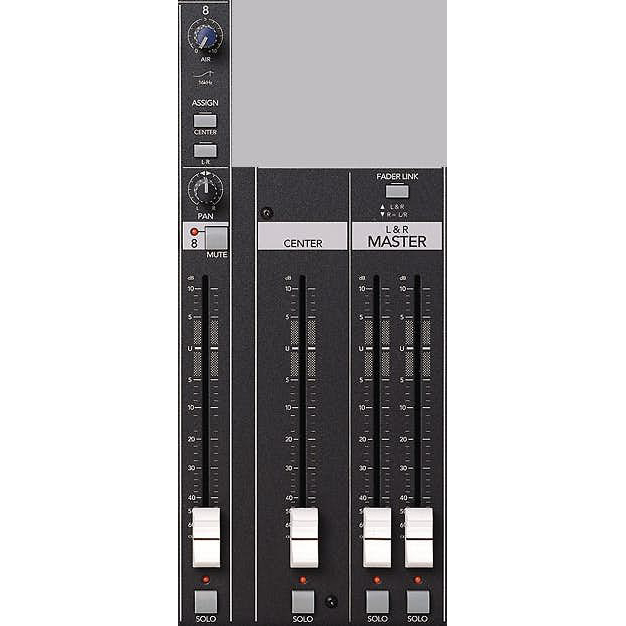

?Fader Link allows L-R to be controlled by one fader or two

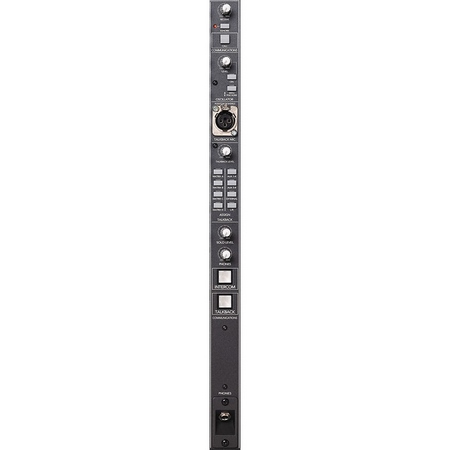

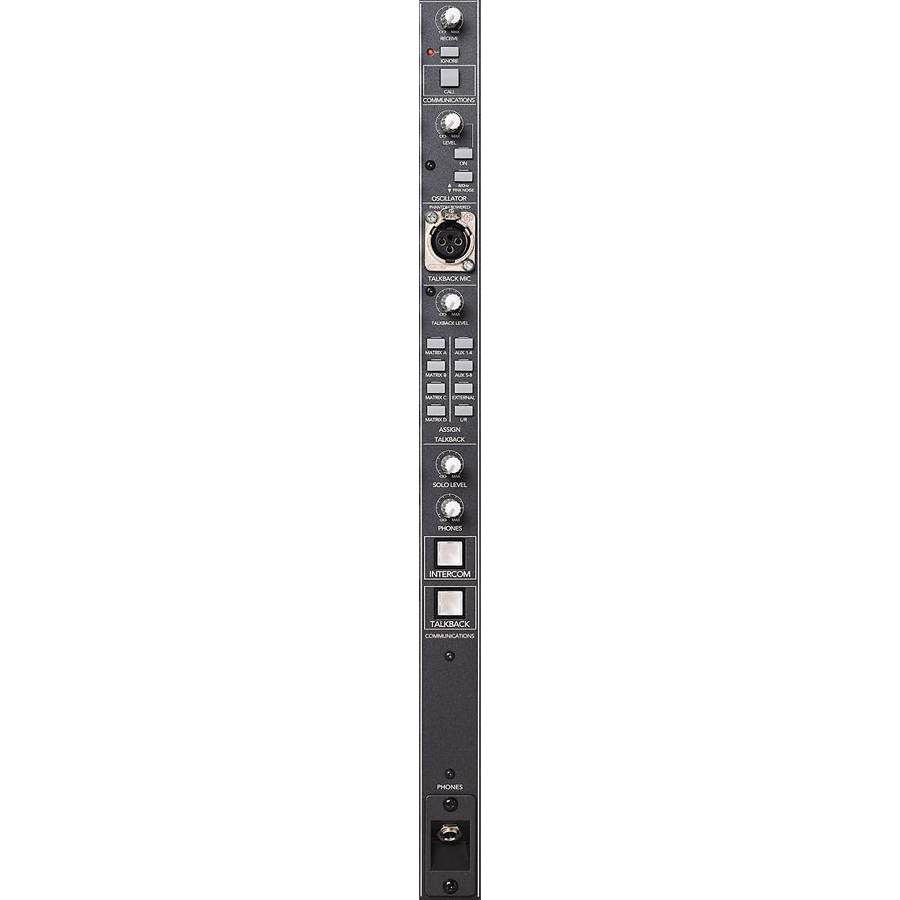

?Communications/Talkback section (ClearComR compatible) integrates intercom system with the headphone system.
?Beefy external rackmountable power supply with redundant power supply capability
?Mackie reliability and durability
