CGN523E

AKG
제품코드 : 4450

가격

현재 이 제품은 단종 입니다.
그러므로 구매하실 수 없습니다.

옵션 & 수량 & 장바구니

소비자 가격 :

장바구니담기

관심상품담기

구매정보

제품상태 :

단종

무이자 할부:

무료배송 :

10만원 이상 구매 시 무료
음향기기 > 음향 > 유선마이크 > 종류 > 구즈넥형

제품사진

이 제품의 연관제품

뮤플의 한 마디

“”

제품 상세설명





AKG CGN323(523)E



- 하이퍼카디오이드 극성 패턴


- 30 혹은 50 cm (12 or 20 in.) 길이


- 95° 수음 각도


- 음향학적으로 어려운 환경에서 사용할 수 있음


- XLR 커넥터를 통한 용이한 연결





  • Hypercardioid polar pattern
  • 30 or 50 cm (12 or 20 in.) long
  • 95° pickup angle
  • For acoustically difficult environments
  • Connects easily via XLR connector

The hypercardioid polar pattern with its narrow 95° pickup angle is suited best for situations where noise typically occurs from all sides (particularly in worship centers), where people talk into the microphone from a greater distance, or where several talkers are grouped side by side.

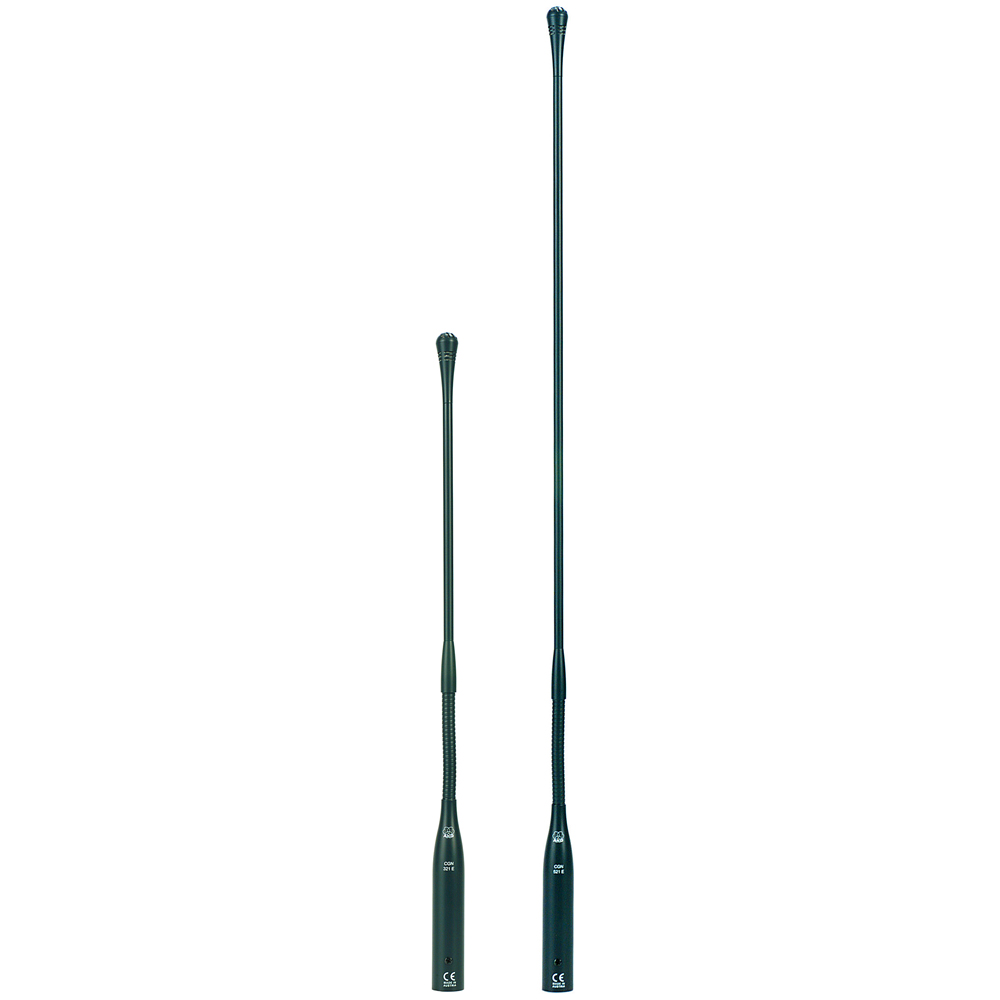

Two different lengths are available.
The .exible joint ensures optimum alignment of the gooseneck to any talker position. Several options are available for installation, i.e., stand, tabletop installation, and lockable.



Choosing polar patterns

Selecting the correct polar pattern for installed sound is difficult since it depends on a variety of factors.
Of course the acoustics of the room play a key role. For highly reverberant rooms such as worship centers, a hypercardioid polar pattern will be the best choice to avoid high levels of unwanted noise.
Correct placement of the loudspeakers is also essential.
If the speakers project right at the capsule, a hypercardioid will be your best bet.
The most difficult task, however, is trying to judge how the talkers will behave.
For talkers who are inexperienced or move around a lot, be sure to choose a cardioid polar pattern for reliable pickup; talkers at a greater distance from the mic will be served best by a hypercardioid.












스펙

Polar pattern Hypercardioid
Pickup angle 95°
Frequency range 50 to 19,000 Hz
Sensitivity 12 mV/PA = -38 dBV re 1 V/Pa
Max. SPL 125 dB (for 1% THD)
Equivalent noise level <21 dB-A
Signal/noise ratio (A-weighted) >73 dB
Impedance <=600 ohms
Recommended load impedance >=2,000 ohms
Supply voltage 9 to 52 V phantom power to DIN 45596 (DPA adapter integrated)
Current consumption <3 mA
Connector 3-pin male XLR
Finish matte dark grey
Dimensions CGN 323: 13.5 dia. x 380 length mm (0.5 dia. x 15 length in.), CGN 523: 13.5 dia. x 580 length mm (0.5 dia. x 23 length in.)
Net weight CGN 323: 160 g (5.7 oz.), CGN 523: 170 g (6 oz.)
Shipping weight CGN 323: 480 g (17 oz.), CGN 523: 500 g (17.7 oz.)
