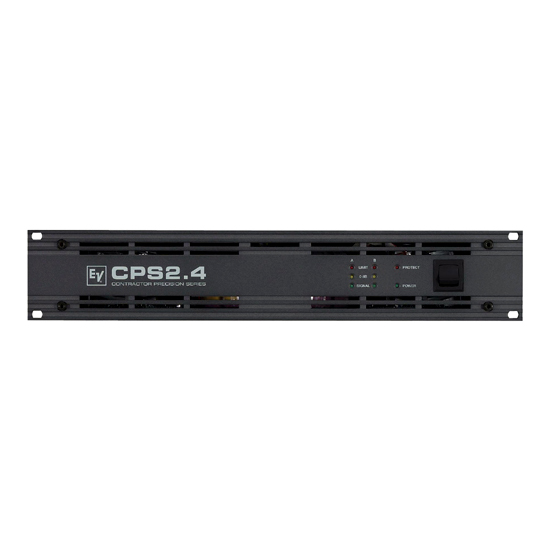

[ CPS2.4 ]
스위칭 파워의 위력

▶ 600W X 2채널 (20hms)
▶ 400W X 2채널 (40hms)
▶ 240W X 2채널 (80hms)
▶ 1240W(40hms, Bridged)
▶ 800W(40hms, Bridged)



MAX. MIDBAND OUTPUT POWER (1k Hz; THD <1% Dual Channel)
2Ω: 600 W
4Ω: 400 W
8Ω: 240 W
-RATED OUTPUT POWER (20 Hz-20 kHz; THD <0.2%)
2Ω: -
4Ω: 300 W
8Ω: 150 W
-MAX. BRIDGED OUTPUT POWER (1,000 Hz; <1% THD)
2Ω: -
4Ω: 1240 W
8Ω: 800 W
-MAXIMUM RMS VOLTAGE SWING (THD=1%, 1kHz)
50V
-POWER BANDWIDTH=THD, 1kHz, half power @ 4Ω
10Hz ~ 60kHz
-VOLTAGE GAIN ref. 1 kHz
32.0 dB
-INPUT SENSITIVITY Rated power @ 8 Ω, 1 kHz
1.15 dBu(0.88Vrms)
-THD @ rated output power (<0.1%, CPS2T@100V)
<0.05 %
-IDE- SMTP 60 Hz, 7kHz
<0.02 %
-DIM30 3.15 kHz, 15 kHz
<0.01 %
-MAXIMUM INPUT LEVEL
22 dBu(9.76 Vrms)
-CROSSTALK ref. 1 kHz, rated output power
<-80dB
-FREQUENCY RESPONSE ref. 1 kHz
15Hz ~ 40kHz (±1dB)
-INPUT IMPEDANCE active balanced
20 kΩ
-DAMPING FACTOR 1 kHz
> 300
-SLEW RATE
35V/us
-SIGNAL TO NOISE RATIO (A-weighted)
>103.5dB
-POWER REQUIREMENT
240 V, 230 V, 220 V, 120 V or 100 V ; 50 ... 60 Hz (factory configured)
-POWER CONSUMTION
600W
-POWER DISSIPATION 1/8 max. output power @ 4Ω
396W (1550BTU/hr)
-PROTECTION
Audio Limiters, High Temperature, DC, HF, Back-EMF, Peak current Limiters, Inrush Current Limiters, Turn-On delay
-COOLING
Front to Rear, 3-stage Fans
-DIMENSIONS (W x H x D)
483 mm x 88.1 mm x 386.8 mm(19” x 3.5” x 15.22”)
-WEIGHT
13.5 kg (30.8 lbs)
-OPTIONAL ACCESSORY
Rear-Rack Mount Kit 18” (D) 112933, Filter cards please see below!
