※이 상품은 1조가격이 아니며 한개 가격입니다.

주파수 반응: 52 - 20k Hz (-3 dB)
115 dB SPL (peak) per pair @ 1m with music material

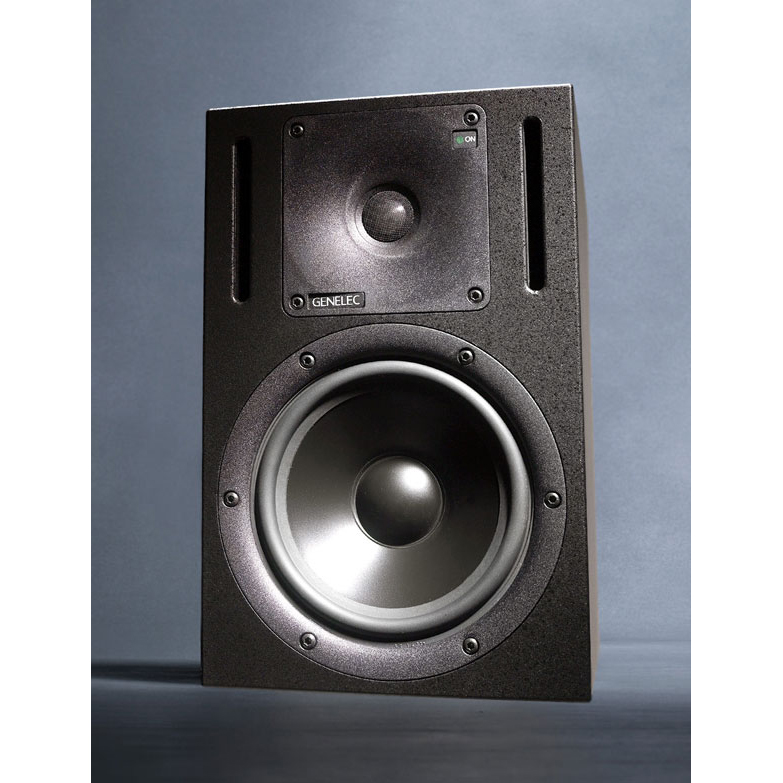

170 mm (6 1/2’) 고효율 polymer composite cone driver
Directivity Control Waveguide™(DCW™)가 결합된 19 mm (3/4’) 금속 돔 트위터
6.5 litre vented cabinet
Bi-amplified: 80 W, 50 W
전자 크로스오버 및 보호 회로
Built in bass roll-off, 고음,저음 각도 콘트롤





SYSTEM

Lower cut-off frequency, -3 dB: < 52 Hz

Upper cut-off frequency, -3 dB: > 20 kHz

Free field frequency response of system: 55 Hz - 18 kHz ( /- 2.5 dB)

Maximum short term sine wave acoustic output on axis in half space,
averaged from
100 Hz to 3 kHz:
@ 1m > 105 dB SPL
@ 0.5m> 111 dB SPL

Maximum long term RMS acoustic output in same conditions with IEC weighted noise (limited by driver unit protection circuit):
@ 1m> 99 dB SPL
@ 0.5m> 105 dB SPL

Maximum peak acoustic output per pair on top of console, @ 1 m from the engineer with music material:
> 115 dB

Self generated noise level in free field @ 1m on axis:
< 10 dB
(A-weighted)

Harmonic distortion at 90 dB SPL @ 1m on axis:
Freq:60...150 Hz< 3%
> 150 Hz< 0.5%

Drivers:
Bass 170 mm (6 1/2’) cone
Treble 19 mm(3/4’)metal dome

Weight:
7 Kg(15 lb)

Dimensions:
Height312 mm(12 1/3’)
Width 200 mm( 7 7/8’)
Depth 240 mm(9 1/2’)

AMPLIFIER

Bass amplifier output power with a 4 Ohm load:
Short term80 W

Treble amplifier output power with an 8 Ohm load:
Short term50 W
Long term output power is limited by driver unit protection circuitry.

Amplifier system distortion at nominal output:
THD< 0.08%
SMPTE-IM< 0.08%
CCIF-IM< 0.08%
DIM 100< 0.08%

Signal to Noise ratio, referred to full output:
Bass> 95 dB
Treble> 95 dB

Mains voltage:100/200 or 115/230 V

Voltage operating range: /-10%

Power consumption:
Idle20 VA
Full output100 VA

CROSSOVER

Input connector:
XLR femalepin 1
gnd pin 2
pin 3 -

Input impedance:
10 kOhm balanced

Input level for 100 dB SPL output @ 1m:
variable from 6 to -6 dBu

Input level for maximum short term sine wave output of 105 dB SPL @ 1m:
variable from 11 to -1 dBu

Subsonic filter below 50
