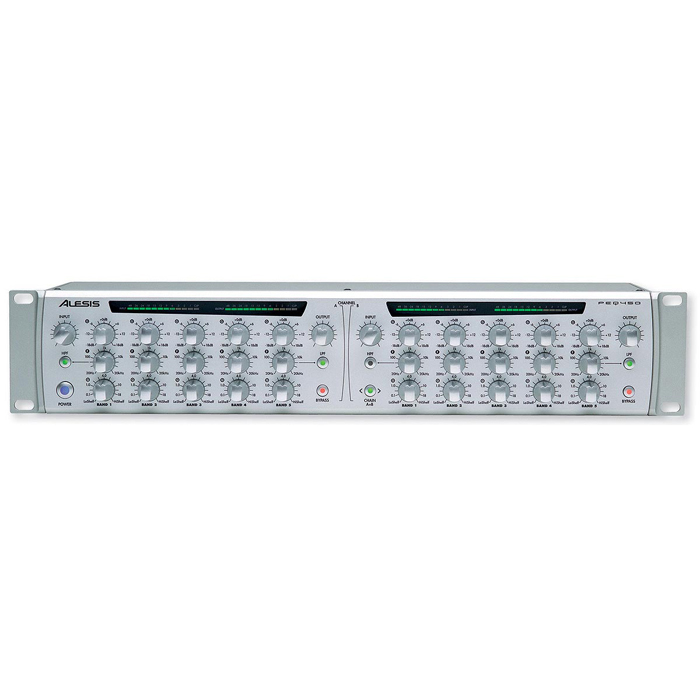

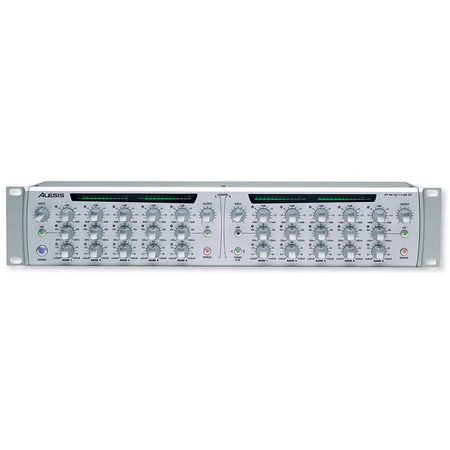

PEQ-450 5-Band Parametric Equalizer

An incredible new sound shaping tool, designed to perform a dedicated function. And do it well. Professional quality, four-channel, dual-stereo digital processor with the look and feel of a high-end analog system. A unique, one knob per function interface. And all the hallmarks of an Alesis product ?like unique, proprietary technology, based on our own patented semiconductor design. Exceptionally feature rich and user friendly. And remarkably affordable. Yet far beyond anything else in their price range.
The PEQ-450 Five-Band Parametric Equalizer.

Specifications

- Frequency Response: 20Hz - 20kHz
- Dynamic Range: 103dB (A weighted)
- THD N: <0.003%
- Converters: Alesis Semiconductor 24-bit 128x oversampling Sigma-Delta A/D, D/A converters
- S/N Ratio: -103 dB (A-weighted)
- Internal Processor: Alesis Semiconductor
Internal Sampling: 48kHz Front Panel: Backlit Power, Input x2 (continuously variable), Backlit High-pass filter x2, Backlit Low-pass filter x2, Output x2 (continuously variable), Boost/Cut /-18dB x10 (continuously variable), Frequency Center 20Hz-20kHz x10 (continuously variable), Q control 0.1 ?18.0 plus High and Low shelf x10 (continuously variable), Bypass x2, Backlit "Chain" mode, 12-segment Input LED x2, 12-segment Output LED x2
- Inputs: 4 channels 1/4" Balanced TRS ?0dBV or 4dBu, switchable
- Input Impedance: 10k?Max
- Input Level: 19dBu
- Outputs: 4 channels 1/4" Impedance-balanced TRS ?0dBV or 4dBu, switchable
- Output Impedance: 220?Max
- Output Level: 19dBu (@ 4dBu nominal)
- Rear Panel: 4dBu / -10dBV select switch, Input 1/4" balanced TRS x4, Output 1/4"
- Impedance-balanced TRS x4, Power.
- Power Requirements: 7 Watts
- Power Supply: Universal, internal switching 90V ?230V
- Dimensions (WxHxD): 19" x 3.5" x 6"
- Weight: 5 lbs. (2.27kg)
