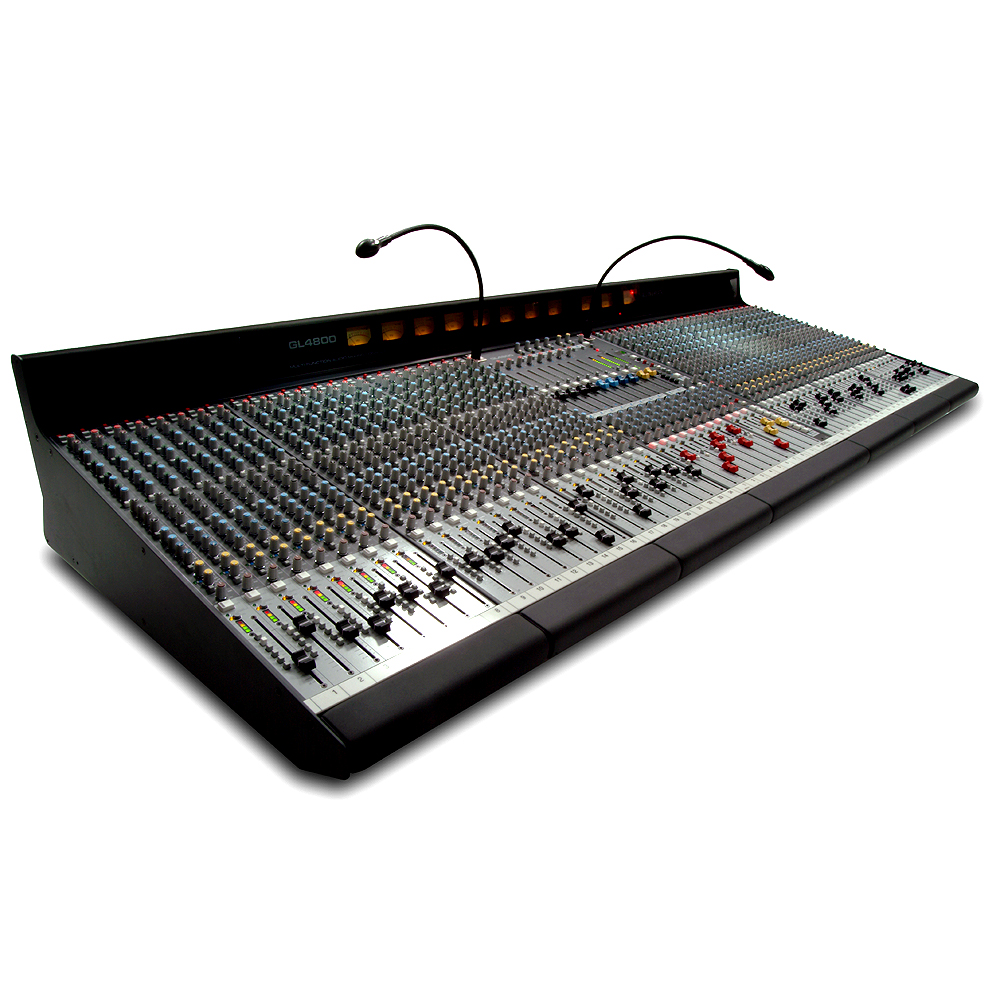

Fully featured Multi-Function Live Sound Mixing Console
Based on the highly successful GL4000, this mixer is a real thoroughbred multi-function mixer, with a mass of features and detail that makes this mixer a joy for engineers to use. This is a truly multi-functional console, offering features such as group output trims for recording, extended auxiliaries using matrix sends, multiple main outputs and trimmable direct outputs from channels.

The GL4800 is also a true workhorse: classic ALLEN&HEATH sound with a new mix head amp design, EQ section from the respected ML4000 and with solid construction, expandable frame design and an array of channel format options ? it’s the Swiss Army Knife of mixers!

The GL4800 is supremely adaptable to every application and is perfect for engineers in both live sound and recording. Rental companies will appreciate a mixer which will work hard for its living, delivering exceptional audio performance every day of the week.

24, 32, 40, 48 channel frames
A,B,C,D mono/stereo channel options
Multi-functionality for FOH/Monitor mixing and live recording
LR and M main mix
8 Audio groups with pan and routing to LR and M
11x4 Matrix
10 Auxiliary sends with faders, inserts and XLR
Aux 10 can provide channel direct output pre/post and level trim
Group out pre/post switching and level trim for recording
Per channel pre/post fader aux switching for unlimited flexibility
Second LR2 output with pre/post fader selection and level trim
Output reverse mode to swap aux inserts and XLR with matrix and LR2
2-track replay to LR and monitor
Stereo channel line inputs can be assigned independently to LR
4 band, 4 sweep EQ with switched Q on midrange
Swept 20-400Hz high pass filters
Matrix to aux link for quick monitors and grouped effects
128 snapshot memory mute automation with preview and safes functions
8 Mute groups or scenes
Solo-in-Place with toggle last and safes
Single press clear or set all mutes function
Mutes on all fader masters
Meters on all buses to prevent mix overload
Simultaneous metering of the groups, LRM and auxes
Integral LED-illuminated moving coil VU meterpod
Simultaneous LED bar and VU monitor metering
Mono/stereo PFL with trim
PFL override AFL for logical input/output monitoring
Engineers wedge fader control in monitor mode
Separate headphones and local outputs
Talkback to LR, M, groups, matrix, and to each aux
Electronically balanced XLR outputs with 27dBu drive capability
Preamp 34dBu maximum input capability for mic or line
Ultra low noise mix head amp design
Balanced inserts with separate send and return sockets
100mm, premium grade dual rail faders
Metal jacks, gold-plated XLRs, sealed pots and switches
Individual circuit card assembly with nutted pots
Built-in combiner for redundant backup power supply
Sys-Link V2 console input linking option
